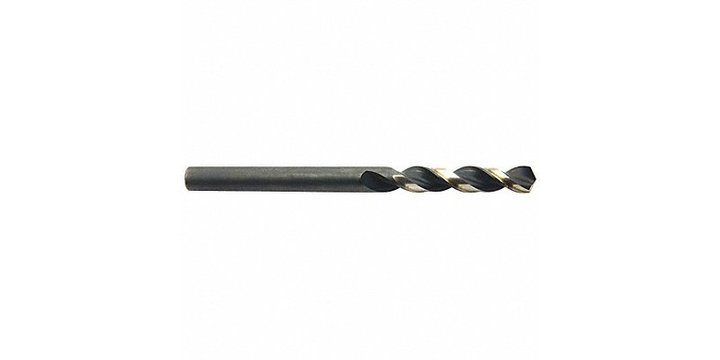

Westward 38MX13 Jobber Drill 7/16 Hss
Westward 38MX13 Jobber Drill 7/16 Hss
Brand:
WESTWARD
Model:
38MX13
Specifications
infotip-icon
View other Jobber Drills dimensions or variations
Please select at least one specification below.
Drill Bit Point Type
Split Point
Drill Bit Size
7/16 in
Overall Length
5-37/64 in
Standards
Not Rated
Material - Machining
High Speed Steel
Shank Dia.
7/16 in
Drill Bit Point Angle
130 Degrees
Measurement System
Fractional Inch
Flute Type
Spiral
Flute Length
2-13/16 in
Cutting Direction
Right Hand
Finish - Machining
Black Oxide
Coolant Fed
Non-Coolant Through
This spec is not available in the specification table.
Shank Type - Machining
Straight
This spec is not available in the specification table.
Decimal Equivalent
0.4375
This spec is not available in the specification table.
