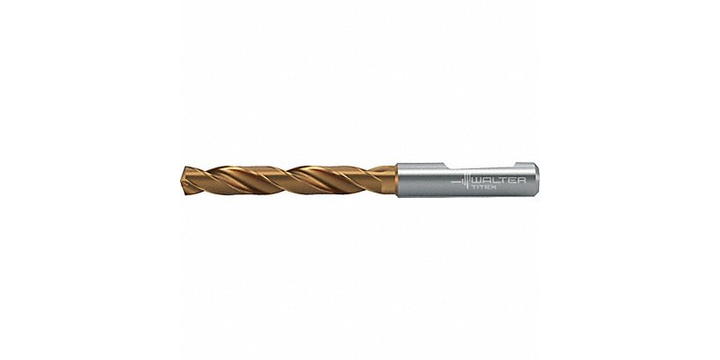

Walter Titex 7378588 Jobber Length Drill Bit 103.00 Mm L

WALTER TITEX

View Brand

Walter Titex 7378588 Jobber Length Drill Bit 103.00 Mm L

Brand:	WALTER TITEX
Model:	7378588

Specifications

View other Jobber Drills dimensions or variations

Drill Bit Size

9.80 mm

Overall Length

103.00 mm

Standards

DIN 6537 L

Material - Machining

Carbide

Shank Dia.

10 mm

Drill Bit Point Angle

140°

Measurement System

Metric

Flute Length

61.00 mm

Cutting Direction

Right Hand

Drill Bit Size

9.80 mm

Overall Length

103.00 mm

Standards

DIN 6537 L

Material - Machining

Carbide

Shank Dia.

10 mm

Drill Bit Point Angle

140°

Measurement System

Metric

Flute Length

61.00 mm

Cutting Direction

Right Hand

Coolant Fed

Non-Coolant Through

Shank Type - Machining

Straight

Decimal Equivalent

0.3858

Primary Material Application

Steel, Cast Iron

Maximum Drilling Depth

49 mm

Coolant Fed

Non-Coolant Through

Shank Type - Machining

Straight

Decimal Equivalent

0.3858

Primary Material Application

Steel, Cast Iron

Maximum Drilling Depth

49 mm

Product Description

S$ 451.25

(exc. GST)

S$ 491.86

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 451.25

Quantity:

Lead time of 5 working days required.

Item will be ready to dispatch within the lead time specified.
