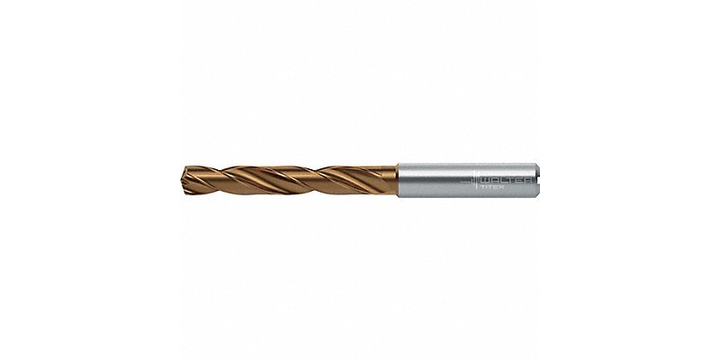

Walter Titex 7377567 Jobber Length Drill Bit 103.00 Mm L
Walter Titex 7377567 Jobber Length Drill Bit 103.00 Mm L
| Brand: | WALTER TITEX |
| Model: | 7377567 |
Specifications
Please select at least one specification below.
Drill Bit Size
9.60 mm
Overall Length
103.00 mm
Standards
DIN 6537 L
Material - Machining
Carbide
Shank Dia.
10 mm
Drill Bit Point Angle
140°
Measurement System
Metric
Flute Length
61.00 mm
Cutting Direction
Right Hand
Finish - Machining
TiSiAlCrN/AlTiN
Drill Bit Size
9.60 mm
Overall Length
103.00 mm
Standards
DIN 6537 L
Material - Machining
Carbide
Shank Dia.
10 mm
Drill Bit Point Angle
140°
Measurement System
Metric
Flute Length
61.00 mm
Cutting Direction
Right Hand
Finish - Machining
TiSiAlCrN/AlTiN
Coolant Fed
Coolant Through
This spec is not available in the specification table.
Shank Type - Machining
Straight
This spec is not available in the specification table.
Decimal Equivalent
0.3701
This spec is not available in the specification table.
Primary Material Application
Steel, Cast Iron, Super-Alloys, Bronze, Titanium, Brass, Copper, Aluminium
This spec is not available in the specification table.
Maximum Drilling Depth
49 mm
This spec is not available in the specification table.
Coolant Fed
Coolant Through
This spec is not available in the specification table.
Shank Type - Machining
Straight
This spec is not available in the specification table.
Decimal Equivalent
0.3701
This spec is not available in the specification table.
Primary Material Application
Steel, Cast Iron, Super-Alloys, Bronze, Titanium, Brass, Copper, Aluminium
This spec is not available in the specification table.
Maximum Drilling Depth
49 mm
This spec is not available in the specification table.
Product Description
S$ 533.47
(exc. GST)
S$ 581.48
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 533.47 |
Quantity:
EA
Lead time of 2 working days required.
Item will be ready to dispatch within the lead time specified.
