Walter Titex 7287767 Jobber Length Drill Bit 66.00 Mm L

WALTER TITEX

View Brand

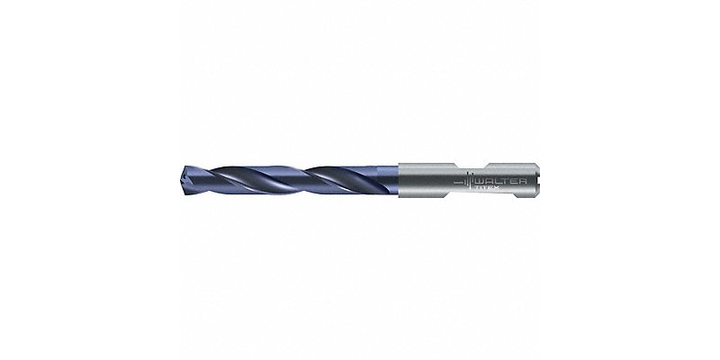

Walter Titex 7287767 Jobber Length Drill Bit 66.00 Mm L

Brand:	WALTER TITEX
Model:	7287767

Specifications

View other Jobber Drills dimensions or variations

Drill Bit Size

3.20 mm

Overall Length

66.00 mm

Standards

DIN 6537 L

Material - Machining

Carbide

Shank Dia.

6 mm

Drill Bit Point Angle

140°

Measurement System

Metric

Flute Length

28.00 mm

Cutting Direction

Right Hand

Finish - Machining

TiNAl

Drill Bit Size

3.20 mm

Overall Length

66.00 mm

Standards

DIN 6537 L

Material - Machining

Carbide

Shank Dia.

6 mm

Drill Bit Point Angle

140°

Measurement System

Metric

Flute Length

28.00 mm

Cutting Direction

Right Hand

Finish - Machining

TiNAl

Coolant Fed

Coolant Through

Decimal Equivalent

0.1260

Primary Material Application

Steel, Cast Iron, Super-Alloys, Bronze, Titanium, Brass, Copper, Aluminium

Maximum Drilling Depth

23 mm

Coolant Fed

Coolant Through

Decimal Equivalent

0.1260

Primary Material Application

Steel, Cast Iron, Super-Alloys, Bronze, Titanium, Brass, Copper, Aluminium

Maximum Drilling Depth

23 mm

Product Description

S$ 351.60

(exc. GST)

S$ 383.24

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 351.60

Quantity:

Lead time of 5 working days required.

Item will be ready to dispatch within the lead time specified.

This item is sold by

SG-4667031604
