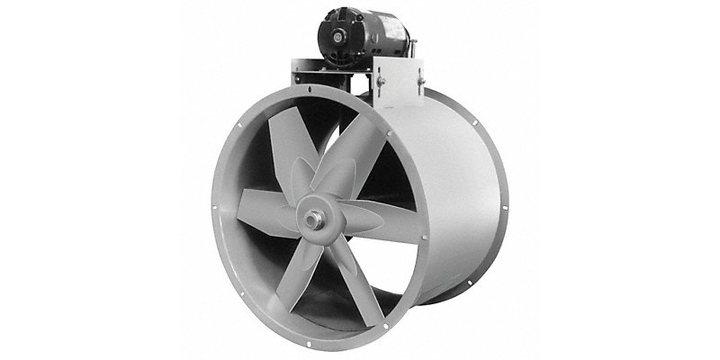

Dayton 7J364 Steel 33.6 Dia 24 L 46.6 H Tubeaxial Fan
Specifications
Please select at least one specification below.
Number of Blades
6
This spec is not available in the specification table.
Bolt Circle Diameter
32-1/4"
This spec is not available in the specification table.
For Air Type
Emergency Smoke
This spec is not available in the specification table.
Blade Material
Steel
This spec is not available in the specification table.
Nominal Voltage
208-230/460V AC
This spec is not available in the specification table.
Overall Diameter
33-5/8"
This spec is not available in the specification table.
Housing Material
Steel
This spec is not available in the specification table.
Maximum Inlet Air Temperature
200°F
This spec is not available in the specification table.
Phase
3
This spec is not available in the specification table.
Motor Horsepower
1-1/2 hp
This spec is not available in the specification table.
Airflow @ 0.000 in SP - Range
10,000 to 19,999 cfm
This spec is not available in the specification table.
Standards
cULus, AMCA
This spec is not available in the specification table.
Assembly
Unassembled
This spec is not available in the specification table.
Blade Diameter
30"
This spec is not available in the specification table.
Overall Length
24"
This spec is not available in the specification table.
Includes Drive Package
Yes
This spec is not available in the specification table.
Number of Speeds
1
This spec is not available in the specification table.
Drive Type
Belt Drive
This spec is not available in the specification table.
Maximum Noise Level @ 5 Feet
31 sones
This spec is not available in the specification table.
Motor Enclosure Design
Totally Enclosed Fan-Cooled (TEFC)
This spec is not available in the specification table.
Product Description
S$ 5,636.88
(exc. GST)
S$ 6,144.20
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 5,636.88 |
Quantity:
EA
Lead time of 6 working days required.
Item will be ready to dispatch within the lead time specified.
