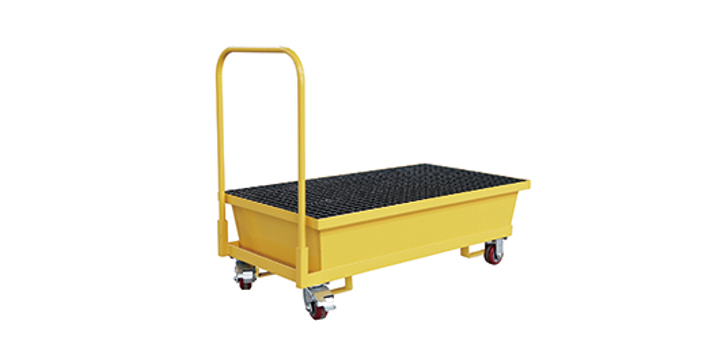

Sysbel SPM222 Mobile Double-Drum Steel Spill Pallet (with Cart)

SYSBEL supply high quality spill control products, protect for the employees and environment. We have various models for your choice.

The steel drain tray is made of 3mm hot-rolled steel plate, the structure is stable and durable. The main body of the tray is coated with epoxy resin powder, and the surface is bright, dust-proof, rust-proof and moisture-proof. It is mainly used for storage, transfer, and packaging of oil drums and chemical drums.

The steel spill pallet can also be used for storing, handling and separating oil drums and chemical drums.

It is made of 3mm hot-rolled steel plate,stable and durable. The pallet body is coated with epoxy resin powder, forming a bright, dust-proof, rust-proof and moisture-proof surface.

The fberglass-reinforced grate of light weight, high strength, wear resistance and aging resistance can be removed for easy cleaning.

The pallet can meet the handling needs of various forklifts.

The cart type two-drum pallet, with large sump capacity, is more convenient to operate.It is designed in accordance with the leakage containing standards,and has passed the 100% leakage containing test.

With the drum bracket at the pallet center, the load can be distributed, thus achieving higher performance.

The 3/4"NPT (hex) ball valve in standard configuration is installed in the leakage hole in order to transfer the leaking liquid and facilitate the operation.

The user is allowed to remove the bottom plug to fully discharge liquid and clean the pallet.

Steel Spill Containment Pallet's features and advantages:

1, These rugged pallets feature generous sump capacities and are 100% leakproof;

2, Unleading coating with polish surface, which has resistance to dust, rust and wet;

3, Large, 8-3/8”W x 3-7/8”H (213-mm x 98-mm) forklift pockets make relocation easy;

4, Fiber reinforced plastics grating is available in corrosion resistant and removes for easy cleaning;

5, Constructed of 11-gauge hot rolled steel and strengthened with formed edging, these rugged pallets feature generous sump capacities and are 100% leakproof.

Specification

• Product Type: Mobile Steel Spill Containment Pallet (with Cart)

• Model Name: SPM222

• Capacity: 48 gal / 180 L

• 200L Drum Quantity: 2

• Loading Capacity: 1500 kg

• Color: Yellow

• Standard Compliance: EPA 40 CFR 264.175

• External Dimensions (H × L × W): 102 × 125 × 70 cm

• Forklift Operation: Not Applicable
