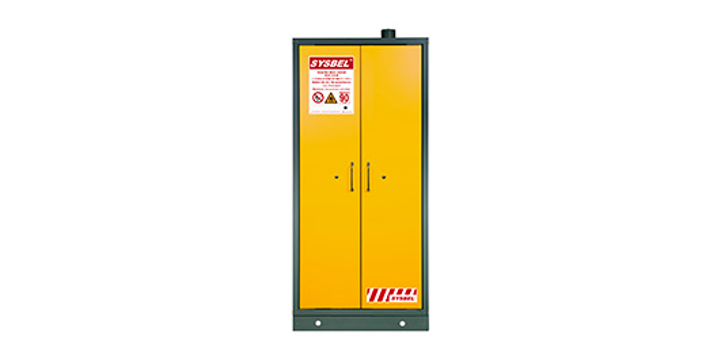

Sysbel SE490300 EN14470-1 Standard 30 Gallon Ce Approved 90 Minute Fire-resistance Safety Cabinet

• Fire Rating (min): 90

• Door Type: Double Door/Automatic

• Color: Yellow

• Standard: EN14470-1

• Dimensions (H×W×D, CM): 204 × 90 × 62.5

• Packing Size (H×W×D, CM): 218 × 97 × 74

• Adjustable Shelves (Blocks) as Standard: 3

• Shelf Load Bearing (kgs): 75

• Bottom Drain Capacity (L): 30

• Diameter of Air Outlet Connection (mm): 100

• Stores a Single Largest Container (L): 27

• Volume (Gallons/Liters): 30 / 114

1. The cabinet body is made of high-strength steel plate, and the surface of the cabinet body is electrostatically sprayed with orange plastic powder, which is easy to clean, scratch-resistant, impact-resistant, and durable. The cabinet compartment is made of multi-layer fireproof and heat-insulating materials to achieve the purpose of 90-minute fire prevention;
2. In normal use, the cabinet door can be opened or closed manually; In the event of a fire, the built-in fuse connection system works and the open door closes automatically to protect the contents of the cabinet when the temperature reaches 122°F (50°C). The cabinet door is equipped with a damper, which can adjust the size of the door opening and closing force;
3. Ventilation holes in accordance with EN14470-1. The vent baffle will automatically close at 158°F (70°C) in a fire environment. The ventilation system can be connected to an external exhaust pipe or a circulating air filter;
4. In the event of a fire, the special heat-sensitive materials prepared at the door cracks and all connections will automatically expand to fill the gaps to ensure that the inside of the cabinet is in a sealed state;
5. It is equipped with 3 adjustable steel shelves as standard, with an adjustable spacing of 32mm and a load-bearing capacity of 75KG. The flange height of the laminate is 30mm, which can prevent small containers from accidentally slipping;
6. Each door has an independent cylindrical lock to effectively prevent unauthorized use The door is affixed with reflective warning labels in multiple languages, which are very eye-catching under the light of the flashlight in the event of fire or power failure, and the label specifications comply with the ISO 3864 international standard;
7. The removable bottom slot and perforated inserts are used to effectively contain spilled liquids from the shelves. The container is placed on a perforated insert to avoid being immersed in the bottom slot;
8. The bottom of the cabinet is equipped with adjustable leveling feet, which can keep the cabinet balanced even on uneven surfaces;
9. It is equipped with an electrostatic grounding conduction port to facilitate the connection of electrostatic grounding wires;
10. The safety cabinet complies with EN 14470-1 and is compliant with both NFPA30 and OSHA regulations. These regulations specify the performance and construction requirements for safety cabinets, providing safe storage areas for flammable and flammable liquids and reducing the risk of fire.
