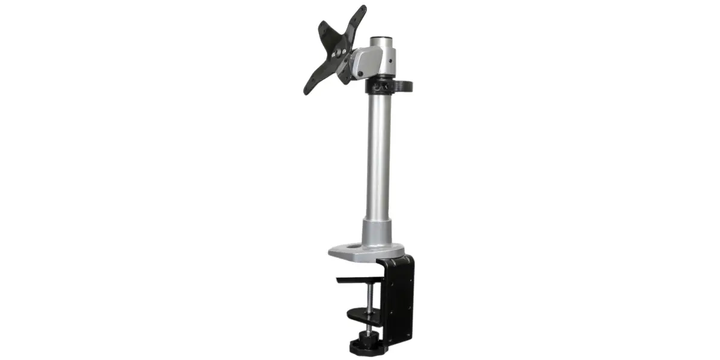

Startech ARMPIVOT Desk Mounting Monitor Arm for 1 X Screen, 34in Screen Size

The ARMPIVOT Adjustable Monitor Arm lets you mount a display to your desk or table on a simple yet stylish monitor pole, with tilt, pivot and height adjustments. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

The desk-mount monitor arm features an 11.89in (302mm) tall support post, for a much greater height adjustment range than a typical monitor stand can provide. For viewing longer pages or blocks of code without scrolling, the LCD arm also supports landscape to portrait display rotation.

Mounting your displays on a support post above the desk surface enables you to adjust your display height, position and viewing angles easily for an ergonomic work environment, with the added benefit of reclaiming valuable workspace on your desk.

Supporting 12 - 30" displays up to a maximum weight capacity of 30lbs (14kg), the monitor mount holds your display with ease, and integrates a cable management hook to keep things neat. For added installation flexibility, the included mounting hardware can either clamp to the side of your desk, table or mount through a grommet hole.

Features & Benefits

• Adjustable monitor arm with several position / viewing angle adjustments
• Supports displays from 12 to 30” (30lbs / 14kg capacity)
• TAA compliant for GSA Schedule purchases
• 360° rotation around the support post
• +90/-15° Tilt
• Landscape to portrait screen rotation
• Includes convertible desk / grommet-mount clamp
• Clamp fits desks up to 4in (101mm) thick
• Integrated cable management
• Experience an ergonomic workspace, through simple display height, position and viewing angle adjustments
• Maximize space efficiency by mounting your displays above the desk surface

Applications

• Mount a display to the side of your desk or table with tilt, swivel and height adjustment capabilities
• Grommet mount your display through a desk or above a server cabinet and position as needed
• Lift your display higher above your desk surface for ideal viewing angles
• Rotate displays to portrait orientation for web design and coding

What’s in the package?

• Support Post
• Monitor Mount
• Large C Clamp
• Small C Clamp
• Hand Screw
• Pressure Plate
• Thumb Screws
• M6x12mm Phillips Screws
• M5x14mm Hex Screws
• Male Round Washer
• M4x15mm Phillips Screw
• Female Round Washer
• Cable Clip
• EVA Cushion
• M3 (2.5mm) Allen Wrench
• Instruction Manual

FAQs

How easy is it to install the monitor arm?
The monitor arm is provided with all the necessary mounting materials. All StarTech mounts come with installations manuals and offers step-by-step guidance for safe mounting.

Does the TV bracket tilt or swivel?
This arm will tilt TVs/Monitors +90 /-15 degrees and features a 360 ° rotation around the support post.

Where can I find my VESA configuration size?
It is advised that you look in your product manual to find the correct VESA size. If you do not have this available you can measure the distance between the four holes in the back of your TV or Monitor. Measure the horizontal and vertical distances from the holes.

Mounting Options

Desk & Grommet Clamp

Height Adjustment

Yes

Material

Steel & Plastic
