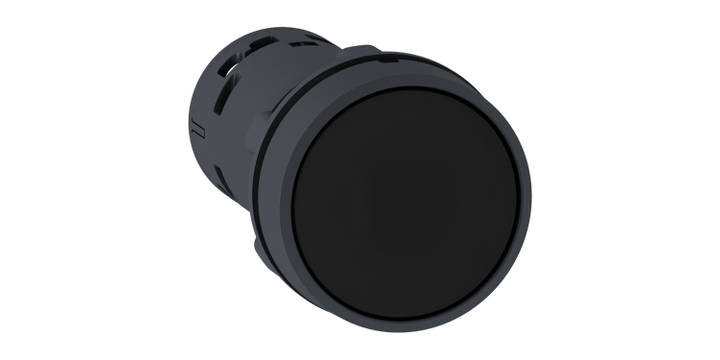

Schneider Electric XB7NH25 Push Button, Harmony XB7, Round Black Flush, 22mm, Push to Release, 1NO + 1NC, Unmarked
Schneider Electric XB7NH25 Push Button, Harmony XB7, Round Black Flush, 22mm, Push to Release, 1NO + 1NC, Unmarked
Brand: | SCHNEIDER ELECTRIC |
Model: | XB7NH25 |
Specifications
Please select at least one specification below.
Contacts Type And Composition
1 NO + 1 NC
Mounting Diameter
22 mm
Operator Profile
Black flush
Standards
IEC 60947-1
CSA C22.2 No 14
JIS C8201-5-1
UL 508
IEC 60947-5-1
JIS C8201-1
[Ui] Rated Insulation Voltage
250 V (pollution degree 3) conforming to IEC 60947-1
Terminals Description Iso N°1
(21-22)NC
(13-14)NO
Short-Circuit Protection
4 A cartridge fuse type gG conforming to IEC 60947-5-1
Electrical Reliability
Λ <= 10exp(-6) at 17 V, 5 mA conforming to IEC 60947-5-4
Shape Of Signaling Unit Head
Round
This spec is not available in the specification table.
Type Of Operator
push and push-to-release
This spec is not available in the specification table.
[Uimp] Rated Impulse Withstand Voltage
4 kV conforming to IEC 60947-1
This spec is not available in the specification table.
Connections - Terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end conforming to IEC 60947-1
This spec is not available in the specification table.
Overvoltage Category
Class II conforming to IEC 61140
This spec is not available in the specification table.
Ip Degree Of Protection
IP20 (rear face) conforming to IEC 60529
IP65 (front face) conforming to IEC 60529
This spec is not available in the specification table.
Ambient Air Temperature For Operation
-25…70 °C
This spec is not available in the specification table.
Mechanical Durability
300000 cycles
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-40…70 °C
This spec is not available in the specification table.
Electrical Durability
1000000 cycles, DC-13, 0.3 A at 24 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 0.03 A at 230 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 0.09 A at 240 V, operating rate <108000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
This spec is not available in the specification table.
Tightening Torque
0.8…1.2 N.m conforming to IEC 60947-1
This spec is not available in the specification table.
Device Presentation
Monolithic product
This spec is not available in the specification table.
Device Mounting
Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-1
This spec is not available in the specification table.
Marking
Unmarked
This spec is not available in the specification table.
Fixing Mode
Fixing nut beneath head: 2…2.4 N.m
This spec is not available in the specification table.
Fixing Center
>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm
>= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm
This spec is not available in the specification table.
[Ie] Rated Operational Current
0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1
0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1
0.3 A at 240 V, AC-14, D300 conforming to IEC 60947-5-1
0.6 A at 120 V, AC-14, D300 conforming to IEC 60947-5-1
This spec is not available in the specification table.
Product Certifications
CCC
GOST
This spec is not available in the specification table.
Shock Resistance
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
This spec is not available in the specification table.
Vibration Resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
This spec is not available in the specification table.
Protective Treatment
TH
This spec is not available in the specification table.
Nema Degree Of Protection
NEMA 12 conforming to UL 50 E
NEMA 3 conforming to UL 50 E
This spec is not available in the specification table.
Shape Of Screw Head
Cross compatible with JIS No 1 screwdriver
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
This spec is not available in the specification table.
Contact Operation
Slow-break
This spec is not available in the specification table.
Positive Opening
With NC contact conforming to IEC 60947-5-1 appendix K
This spec is not available in the specification table.
Product Description
S$ 138.00
(exc. GST)
S$ 150.42
(inc. GST)
Quantity:
EA
MOQ of 10 EA
Bundle of 1 EA
This item is sold by0
Schneider Electric
