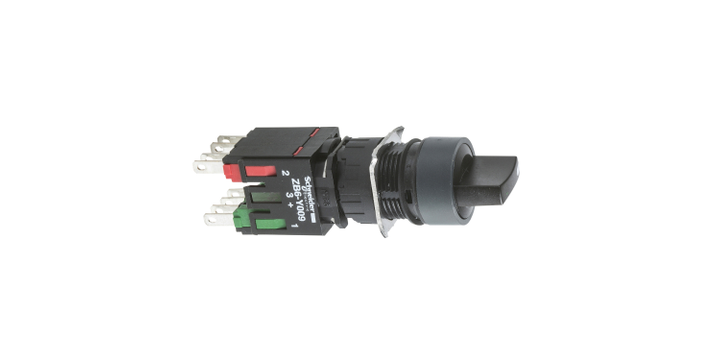

Schneider Electric XB6AD221B Selector Switch, Harmony XB6, Black Round, 16mm, 3 Positions, Stay Put, 1NO
Schneider Electric XB6AD221B Selector Switch, Harmony XB6, Black Round, 16mm, 3 Positions, Stay Put, 1NO
Brand: | SCHNEIDER ELECTRIC |
Model: | XB6AD221B |
Specifications
Please select at least one specification below.
Width
18 mm
Product Or Component Type
Complete selector switch
Depth
68 mm
Standards
IEC 60947-5-5
JIS C8201-5-1
IEC 60947-1
UL 508
IEC 60947-5-1
JIS C 852
CSA C22.2 No 14
JIS C8201-1
[Ui] Rated Insulation Voltage
250 V (pollution degree 3) conforming to IEC 60947-1
Connections - Terminals
Faston connectors, connection size: 2.8 x 0.5 mm
Height
18 mm
Ip Degree Of Protection
IP65 conforming to IEC 60529
Ambient Air Temperature For Operation
-25…70 °C
Contacts Material
Silver alloy (Ag/Ni)
[Ie] Rated Operational Current
3 A at 120 V, AC-15, B300 conforming to IEC 60947-5-1
1.5 A at 240 V, AC-15, B300 conforming to IEC 60947-5-1
0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1
0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1
Contacts Type And Composition
1 NO + 1 NC
Shock Resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Mounting Diameter
16 mm
Shape Of Signaling Unit Head
Round
Device Short Name
XB6
This spec is not available in the specification table.
Range Of Product
Harmony XB6
This spec is not available in the specification table.
[Uimp] Rated Impulse Withstand Voltage
4 kV conforming to IEC 60947-1
This spec is not available in the specification table.
Mechanical Durability
500000 cycles
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-40…70 °C
This spec is not available in the specification table.
Electrical Durability
1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
This spec is not available in the specification table.
Product Certifications
UL
CSA
CCC
GOST
This spec is not available in the specification table.
Vibration Resistance
+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
This spec is not available in the specification table.
Electrical Shock Protection Class
Class II conforming to IEC 61140
This spec is not available in the specification table.
Protective Treatment
TC
This spec is not available in the specification table.
Nema Degree Of Protection
NEMA 13 conforming to UL 50
NEMA 4 conforming to UL 50
NEMA 4X conforming to UL 50
NEMA 13 conforming to CSA C22.2 No 94
NEMA 4 conforming to CSA C22.2 No 94
NEMA 4X conforming to CSA C22.2 No 94
This spec is not available in the specification table.
Terminals Description Iso N°1
(13-14)NO
This spec is not available in the specification table.
Type Of Operator
stay put
This spec is not available in the specification table.
Operator Profile
Black standard handle
This spec is not available in the specification table.
Contact Operation
Slow-break
This spec is not available in the specification table.
Positive Opening
With conforming to IEC 60947-5-1 appendix K
This spec is not available in the specification table.
Short-Circuit Protection
6 A cartridge fuse type gG
This spec is not available in the specification table.
Electrical Reliability
Λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4
This spec is not available in the specification table.
Bezel Material
Plastic
This spec is not available in the specification table.
Operator Position Information
3 positions 60°
This spec is not available in the specification table.
Product Description
S$ 47.30
(exc. GST)
S$ 51.56
(inc. GST)
