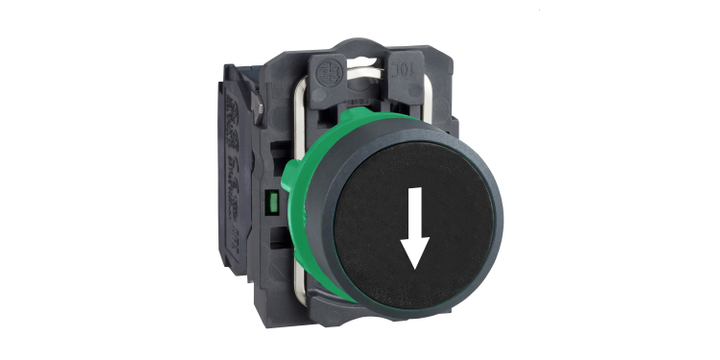

Schneider Electric XB5AA3351 Push Button, Harmony XB5, Plastic, Flush, black,22mm, Spring Return, Marked Down Arrow, 1NO

View Brand

Schneider Electric XB5AA3351 Push Button, Harmony XB5, Plastic, Flush, black,22mm, Spring Return, Marked Down Arrow, 1NO

Brand:	SCHNEIDER ELECTRIC
Model:	XB5AA3351

Technical Data Sheets

Product Datasheet

Instruction sheet

Catalogue

Environmental disclosure

Specifications

View other Push Button Switches dimensions or variations

Push Button Style

Round

Contacts Type And Composition

1 NO

Mounting Diameter

22.5 mm

Type Of Operator

spring return

Operator Profile

Black flush, down arrow (white)

Bezel Material

Plastic Dark grey plastic

Standards

CSA C22.2 No 14 JIS C8201-5-1 IEC 60947-1 UL 508 IEC 60947-5-1 IEC 60947-5-4 JIS C8201-1

[Ui] Rated Insulation Voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] Rated Impulse Withstand Voltage

6 kV conforming to IEC 60947-1

Connections - Terminals

Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1

Overvoltage Category

Class II conforming to IEC 60536

Ip Degree Of Protection

IP66 conforming to IEC 60529 IP67 IP69 IP69K

Ambient Air Temperature For Operation

-40…70 °C

Mechanical Durability

10000000 cycles

Ambient Air Temperature For Storage

-40…70 °C

Electrical Durability

1000000 cycles AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C 1000000 cycles AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C 1000000 cycles AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C 1000000 cycles DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C 1000000 cycles DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C

Tightening Torque

0.8…1.2 N.m conforming to IEC 60947-1

Device Presentation

Complete product

Contacts Material

Silver alloy (Ag/Ni)

[Ie] Rated Operational Current

3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current

10 A conforming to IEC 60947-5-1

Product Certifications

BV GL RINA CSA DNV LROS (Lloyds register of shipping) UL listed

Ik Degree Of Protection

IK03 conforming to IEC 50102

Shock Resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Vibration Resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Resistance To High Pressure Washer

7000000 Pa at 55 °C, distance : 0.1 m

Protective Treatment

Nema Degree Of Protection

NEMA 13 NEMA 4X

Terminals Description Iso N°1

(13-14)NO

Shape Of Screw Head

Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver

Contact Operation

Slow-break

Positive Opening

Without

Short-Circuit Protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

Electrical Reliability

Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4

Fixing Collar Material

Plastic

Head Type

Standard

Contacts Usage

Standard contacts

Operating Travel

2.6 mm (NO changing electrical state) 4.3 mm (total travel)

Operating Force

3.8 N NO changing electrical state
