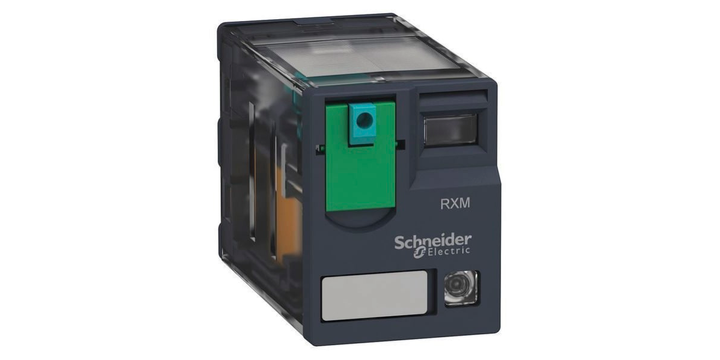

Schneider Electric RXM4AB1JD Plug in Power Relay, 12V Dc Coil, 8A Switching Current, 4PDT
Schneider Electric RXM4AB1JD Plug in Power Relay, 12V Dc Coil, 8A Switching Current, 4PDT
| Brand: | SCHNEIDER ELECTRIC |
| Model: | RXM4AB1JD |
Specifications
Please select at least one specification below.
Mounting Type
Plug In
Number of Poles
4
Contact Material
Silver Alloy
Contact Configuration
4PDT
Coil Voltage
12 V dc
Standards Met
CE, CSA, EN/IEC, GOST, Lloyd's, REACH, RoHS Compliant, UL
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
55°C
Terminal Type
Plug In
Maximum Switching Voltage AC
250 V
Coil Power
900 mW
Coil Resistance
160 Ω
Maximum Switching Power DC
168 W
Switching Current
8 A
Maximum Switching Power AC
1.5 kVA
Length
21 mm
This spec is not available in the specification table.
Depth
47.7 mm
This spec is not available in the specification table.
Height
27 mm
This spec is not available in the specification table.
Life
100000 cycles
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
Series Name
Harmony Relay RXM
This spec is not available in the specification table.
Better World Product
Yes
This spec is not available in the specification table.
Better World Verification
Green Premium
This spec is not available in the specification table.
Product Description
S$ 16.48
(exc. GST)
S$ 17.96
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 16.48 |
Quantity:
EA
