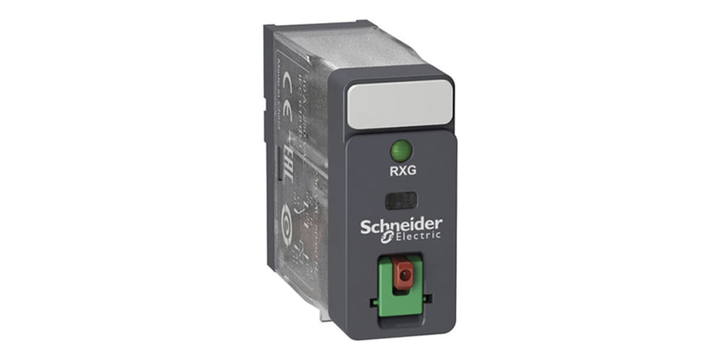

Schneider Electric RXG22ED Plug in Power Relay, 48V Dc Coil, DPST-C/O
Schneider Electric RXG22ED Plug in Power Relay, 48V Dc Coil, DPST-C/O
| Brand: | SCHNEIDER ELECTRIC |
| Model: | RXG22ED |
Specifications
Please select at least one specification below.
Mounting Type
Plug In
Number of Poles
2
Contact Material
Silver Alloy
Contact Configuration
DPST-C/O
Coil Voltage
48 V dc
Standards Met
CE, CSA, CULus, cURus File E173-76 CCN NRNT2, IEC/EN 6181--1, NRNT7, NRNT8, UL
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
70°C
Terminal Type
Plug In
Maximum Switching Voltage AC
250 V
Maximum Switching Voltage DC
30 V
Coil Power
530 mW
Coil Resistance
4400 Ω
Isolation Coil To Contact
5 kV ac
Maximum Switching Power DC
150 W
Maximum Switching Power AC
1.25 kVA
Length
13 mm
This spec is not available in the specification table.
Application
Industrial
This spec is not available in the specification table.
Depth
37.1 mm
This spec is not available in the specification table.
Height
30.6 mm
This spec is not available in the specification table.
Life
10000000 cycles
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
Series Name
Harmony Relay RXG
This spec is not available in the specification table.
Better World Product
Yes
This spec is not available in the specification table.
Better World Verification
Green Premium
This spec is not available in the specification table.
Product Description
S$ 21.01
(exc. GST)
S$ 22.90
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 21.01 |
Quantity:
EA
Lead time of 7 working days required.
Item will be ready to dispatch within the lead time specified.
