Schneider Electric LXD1B7 Contactor Coil, Tesys Deca, LXD1, 24V Ac 50/60Hz for 9…38A Contactor
Schneider Electric LXD1B7 Contactor Coil, Tesys Deca, LXD1, 24V Ac 50/60Hz for 9…38A Contactor
Technical Data Sheets
Product Description

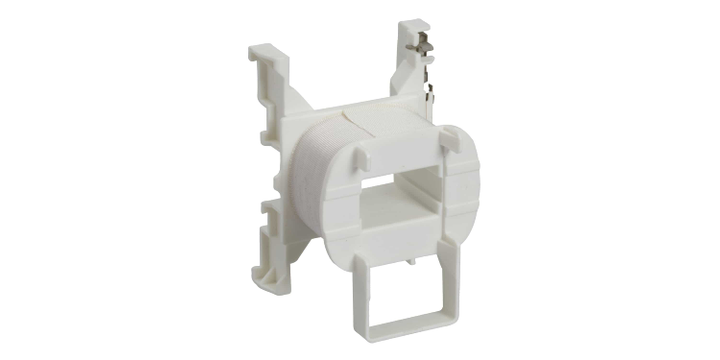

Schneider Electric LXD1B7 Contactor Coil, Tesys Deca, LXD1, 24V Ac 50/60Hz for 9…38A Contactor

TeSys Deca replacement coil 24V AC 50/60Hz, for TeSys Deca contactors. To be used with 3 and 4-pole contactors LC1D09 to D38 and LC1DT20, DT40. It operates in the voltage limits 0.8-1.1 Uc (50Hz), 0.85-1.1 Uc (60Hz) and environments until 60°C Green Premium compliant (RoHS/REACh).

Spescifications:

Range:

  • TeSys

Product or Component Type:

  • Contactor Coil

Device Short Name:

  • LXD1

Control Circuit Type:

  • AC at 50/60 Hz

[Uc] Control Circuit Voltage:

  • 24 V AC 50/60 Hz

Average Resistance:

  • 5.37 Ohm at 20 °C

Inductance of Closed Circuit:

  • 0.22 H

Product Compatibility:

  • LC1D09...D38
  • LC1DT20...DT40

Mechanical Durability:

  • 15 Mcycles

Maximum Operating Rate:

  • 3600 cyc/h at 60 °C

Complementary:

  • Coil Technology: Without built-in suppressor module
  • Control Circuit Voltage Limits:
    • Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C)
    • Operational: 0.8...1.1 Uc at 50 Hz (at <60 °C)
    • Operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
  • Inrush Power in VA:
    • 70 VA 60 Hz cos phi 0.75 (at 20 °C)
    • 70 VA 50 Hz cos phi 0.75 (at 20 °C)
  • Hold-in Power Consumption in VA:
    • 7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
    • 7 VA 50 Hz cos phi 0.3 (at 20 °C)
  • Heat Dissipation: 2…3 W at 50/60 Hz

Environment:

  • Ambient Air Temperature for Operation: -5…60 °C

Net Weight:

  • 0.07 kg
S$ 31.60
(exc. GST)
S$ 34.44
(inc. GST)
Quantity:
EA
This item is sold by
Schneider Electric
