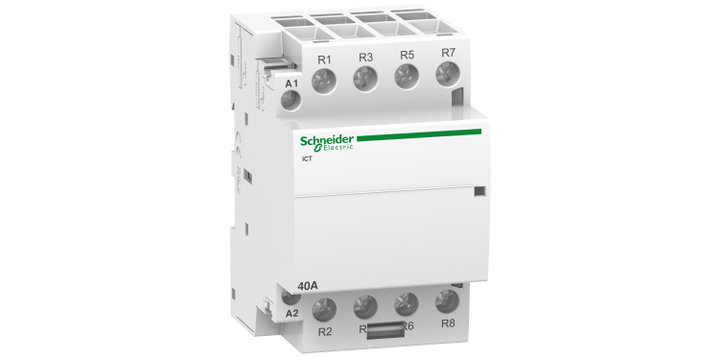

Schneider Electric A9C20847 Ict 40A 4NC 220...240V 50Hz Contactor
Schneider Electric A9C20847 Ict 40A 4NC 220...240V 50Hz Contactor
| Brand: | SCHNEIDER ELECTRIC |
| Model: | A9C20847 |
Specifications
Please select at least one specification below.
Device Short Name
iCT
Range Of Product
Acti9
Depth
60 mm
Pole Contact Composition
4 NC
Colour
White
This spec is not available in the specification table.
Control Type
Remote control
This spec is not available in the specification table.
Product Name
Acti9 iCT
This spec is not available in the specification table.
Compatibility Code
ICT
This spec is not available in the specification table.
Mounting Mode
Clip-on
This spec is not available in the specification table.
Standards
IEC/EN 61095
This spec is not available in the specification table.
[Ui] Rated Insulation Voltage
500 V AC 50/60 Hz
This spec is not available in the specification table.
[Uimp] Rated Impulse Withstand Voltage
4 kV
This spec is not available in the specification table.
Mounting Support
35 mm symmetrical DIN rail
This spec is not available in the specification table.
Connections - Terminals
Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigid
Control circuit: tunnel type terminals1 cable(s) 1.5…2.5 mm² rigid
Power circuit: tunnel type terminals1 cable(s) 6…16 mm² flexible
Power circuit: tunnel type terminals1 cable(s) 6…25 mm² rigid
Control circuit: tunnel type terminals2 cable(s) 1.5…2.5 mm² flexible
This spec is not available in the specification table.
Height
85 mm
This spec is not available in the specification table.
Ip Degree Of Protection
IP20
This spec is not available in the specification table.
Pollution Degree
2
This spec is not available in the specification table.
Ambient Air Temperature For Operation
-5…60 °C
This spec is not available in the specification table.
Mechanical Durability
1000000 cycles
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-40…70 °C
This spec is not available in the specification table.
Electrical Durability
100000 cycles IEC/EN 61095 40 A 50 Hz AC-7A
30000 cycles IEC/EN 61095 15 A 50 Hz AC-7B
30000 cycles IEC/EN 61095 50 Hz AC-7C
100000 cycles EN/IEC 60947-4-1 50 Hz AC-1
30000 cycles EN/IEC 60947-4-1 50 Hz AC-3
30000 cycles EN/IEC 60947-4-1 50 Hz AC-5a
30000 cycles EN/IEC 60947-4-1 50 Hz AC-5b
This spec is not available in the specification table.
Operating Altitude
2000 m
This spec is not available in the specification table.
Tightening Torque
Control circuit: 0.8 N.m
Power circuit: 3.5 N.m
This spec is not available in the specification table.
[Ue] Rated Operational Voltage
400 V AC 50 Hz
This spec is not available in the specification table.
[Ie] Rated Operational Current
40 A AC-7A
15 A AC-7B
This spec is not available in the specification table.
[Uc] Control Circuit Voltage
220...240 V AC 50 Hz
This spec is not available in the specification table.
Inrush power in VA
53 VA
This spec is not available in the specification table.
Hold-in power consumption in VA
6.5 VA
This spec is not available in the specification table.
Heat dissipation
2.1 W at 50/60 Hz
This spec is not available in the specification table.
Poles
4P
This spec is not available in the specification table.
Width
54 mm
This spec is not available in the specification table.
Network Type
AC
This spec is not available in the specification table.
Network Frequency
50 Hz
This spec is not available in the specification table.
Local Signalling
6
This spec is not available in the specification table.
9 Mm Pitches
Action indicator
This spec is not available in the specification table.
Relative Humidity
95 % at 55 °C
This spec is not available in the specification table.
Tropicalisation
2 conforming to EN 60947-4-1
2 conforming to EN 61095
2 conforming to IEC 1095
This spec is not available in the specification table.
Product Compatibility
IACTp
IACTc
IACTs
IATEt
This spec is not available in the specification table.
Market Segment
Small commercial
Residential
This spec is not available in the specification table.
Control Signal Type
Maintained
This spec is not available in the specification table.
Switching Frequency
100 switching operations/day
This spec is not available in the specification table.
Noise Level
30 dB
This spec is not available in the specification table.
Maximum Power
2.1 W at 400 V AC
This spec is not available in the specification table.
Product Description
S$ 144.67
(exc. GST)
S$ 157.69
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 144.67 |
Quantity:
EA
This item is sold by0
Schneider Electric
