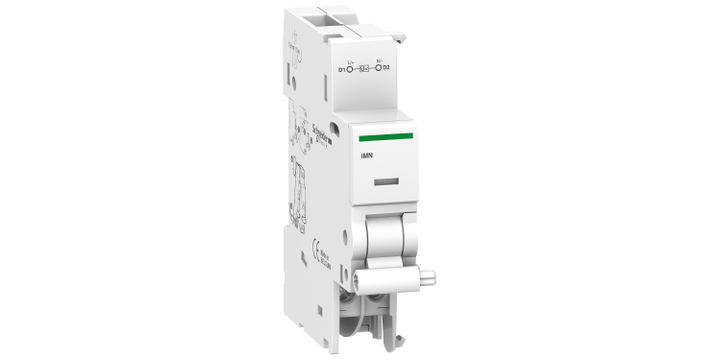

Schneider Electric A9A27108 Undervoltage Release, Acti9 Imn, 24VAC/24VDC
Schneider Electric A9A27108 Undervoltage Release, Acti9 Imn, 24VAC/24VDC
Brand: | SCHNEIDER ELECTRIC |
Model: | A9A27108 |
Specifications
Please select at least one specification below.
Device Short Name
iMN
Product Or Component Type
Undervoltage release
Range Of Product
Acti9
[Uc] Control Circuit Voltage
24 V AC 50/60 Hz
24 V DC
Range Compatibility
Acti 9 Acti9 iDPN Vigi
Acti 9 Acti9 iID
Acti 9 Acti9 iSW-NA
Acti 9 Acti9 iC60 double terminals miniature circuit breaker
Wire Stripping Length
10 mm for bottom connection
Device Application
Protection
This spec is not available in the specification table.
Control Type
Toggle
This spec is not available in the specification table.
Colour
White
This spec is not available in the specification table.
Compatibility Code
IMN
This spec is not available in the specification table.
Mounting Mode
Clip-on
This spec is not available in the specification table.
Standards
EN/IEC 60947-5-1
This spec is not available in the specification table.
Mounting Support
DIN rail
This spec is not available in the specification table.
Local Signalling
Red indicator light on the front face
This spec is not available in the specification table.
Connections - Terminals
Clamp terminal (bottom) - 1 cable(s) 1…6 mm² - rigid without cable end
Clamp terminal (bottom) - 1 cable(s) 0.5…4 mm² - flexible without cable end
Clamp terminal (bottom) - 2 cable(s) 1…2.5 mm² - rigid without cable end
Clamp terminal (bottom) - 2 cable(s) 1…2.5 mm² - rigid with cable end
This spec is not available in the specification table.
Comb Busbar And Distribution Block Compatibility
Top and bottom: YES
This spec is not available in the specification table.
9 Mm Pitches
2
This spec is not available in the specification table.
Ambient Air Temperature For Operation
-35…70 °C
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-40…85 °C
This spec is not available in the specification table.
Tightening Torque
1 N.m bottom
This spec is not available in the specification table.
Protection Type
Undervoltage
This spec is not available in the specification table.
Product Description
S$ 110.30
(exc. GST)
S$ 120.23
(inc. GST)
