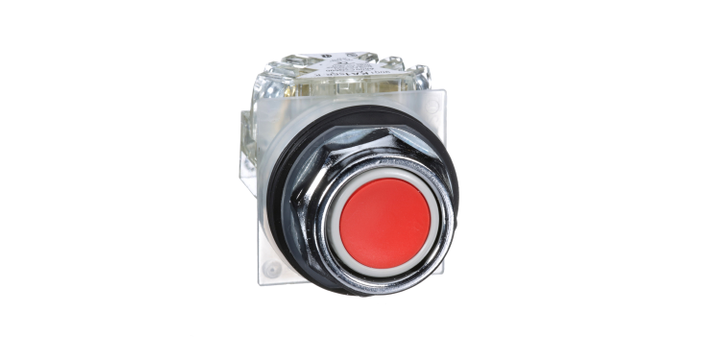

Schneider Electric 9001KR1RH13 Push Button, Harmony 9001K, Metal, Flush, Red, 30mm, Spring Return, 1 Co
Schneider Electric 9001KR1RH13 Push Button, Harmony 9001K, Metal, Flush, Red, 30mm, Spring Return, 1 Co
Product Description

Schneider Electric 9001KR1RH13 Push Button, Harmony 9001K, Metal, Flush, Red, 30mm, Spring Return, 1 Co

This Harmony 9001K, modular flush red push button with full guard has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, has 1 x NO + 1 x NC contact and uses screw-clamp terminals. This flush push button with full guard provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Specifications:

  • Range of Product: Harmony 9001K
  • Product or Component Type: Push-button
  • Device Short Name: 9001K
  • Type of Operator: Spring return
  • Operator Profile: Red flush, unmarked
  • Operator Additional Information: Metal guard
  • Complementary:
    • Bezel Material: Metal
    • Mounting Diameter: 30 mm
    • Shape of Signaling Unit Head: Octagonal
    • Contacts Type and Composition: 1 C/O
    • Connections - Terminals: Screw clamp terminals 1 x 0.22...2 x 1.5 mm² conforming to IEC 60947-1
    • Tightening Torque: 0.8 N.m conforming to IEC 60947-1
    • Shape of Screw Head: Cross slotted
    • Mechanical Durability: 5,000,000 cycles
    • Operating Position: Any position
    • Rated Operational Current:
      • 3 A at 240 V, AC-15, A600-Q600 conforming to NEMA
      • 0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA
    • Rated Insulation Voltage: 250 V (pollution degree 3) conforming to IEC 60947-1
    • Rated Impulse Withstand Voltage: 2.5 kV conforming to IEC 60947-1
    • Contacts Material: Silver alloy contacts
    • Contact Operation: Standard
    • Positive Opening: Without
    • Short-Circuit Protection: 10 A cartridge fuse conforming to IEC 60947-5-1
    • Conventional Free Air Thermal Current: 10 A
    • Rated Short-Circuit Making Capacity:
      • 12 kA at 600 V AC-15, 7200 VA
      • 15 kA at 480 V AC-15, 7200 VA
      • 30 kA at 240 V AC-15, 7200 VA
      • 60 kA at 120 V AC-15, 7200 VA
      • 0.1 kA at 600 V DC-13
      • 0.27 kA at 250 V DC-13
      • 0.55 kA at 125 V DC-13
    • Rated Breaking Capacity:
      • 3 kA at 240 V AC-15, 720 VA
      • 6 kA at 120 V AC-15, 720 VA
      • 1.2 kA at 600 V AC-15, 720 VA
      • 1.5 kA at 480 V AC-15, 720 VA
      • 0.1 kA at 600 V DC-13
      • 0.27 kA at 250 V DC-13
      • 0.55 kA at 125 V DC-13
    • Terminals Description ISO n°1: (13-14-11-12)OF
    • CAD Overall Width: 48 mm
    • CAD Overall Height: 45 mm
    • CAD Overall Depth: 56 mm
    • Net Weight: 0.121 kg
    • Device Presentation: Complete product
    • Cap/Operator or Lens Colour: Red
  • Environment:
    • Standards: IEC 60947-1, JIS C 4520, IEC 60947-5-1, CSA C22.2 No 14, JIS C 852, IEC 60947-5-4
    • Product Certifications: NEMA, UL 508
    • Protective Treatment: TC
    • Ambient Air Temperature for Storage: -40…70 °C
    • Ambient Air Temperature for Operation: -25…70 °C
    • Vibration Resistance: 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
    • Shock Resistance: 50 gn conforming to IEC 60068-2-27
    • Electrical Shock Protection Class: Class II conforming to IEC 61140
    • IP Degree of Protection: IP66 conforming to IEC 60529
    • NEMA Degree of Protection: NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
