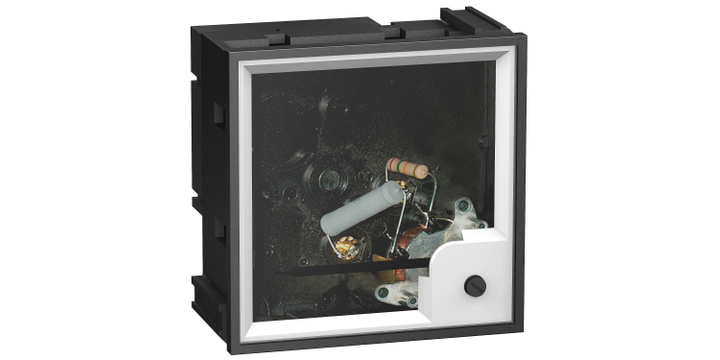

Schneider Electric 16074 96 X 96 - Ammeter Amp Powerlogic
Schneider Electric 16074 96 X 96 - Ammeter Amp Powerlogic
Product Description

Schneider Electric 16074 96 X 96 - Ammeter Amp Powerlogic

This instrument is aimed to be mounted on front face of monitoring switchboards. The ammeters measure in amps the current flowing through an electrical circuit. Suitable for standard application, this ammeter allow 1.3 times the nominal current. This analog device do not provide 5A current transformers nor the dial, both need to be ordered separately. The dial need to be ordered according to the connected current transformer ratio, several scales available. Accuracy class 1.5. Complient with standards IEC 60051-1, IEC 61010-1 and IEC 61000-4. The dimensions of the product are 70mm in width, 83mm in heigh and 66mm in depth.

Main

Range: PowerLogic
Device short name: AMP
Product or component type: Ammeter
Range compatibility:

  • Prisma Prisma P door
  • Prisma Prisma G door

Technology type: Ferromagnetic
Scale type: 80 mm over 90°
Mounting support: Front face

Complementary

Type of measurement: Current
Accuracy class: Class 1.5
Power consumption in VA: 1.1 VA
Overload withstand:

  • 1.2 In, permanently
  • 10 In, 5 s

Device mounting: Flush
Operating position: 30°/vertical
Width: 96 mm
Height: 96 mm
Depth: 75 mm
Temperature drift: +/- 0.003 %/°C

Environment

Standards:

  • IEC 61010-1
  • IEC 61000-4
  • IEC 60051-1

IP degree of protection: IP52
Ambient air temperature for operation: -25…50 °C
Reference temperature: 23 °C

S$ 162.70
(exc. GST)
S$ 177.34
(inc. GST)
Quantity:
EA
