Rs Pro Line Monitor RS232C
Brand:
RS Pro
Model:
202537
Technical Data Sheets
Product Description

Product Details

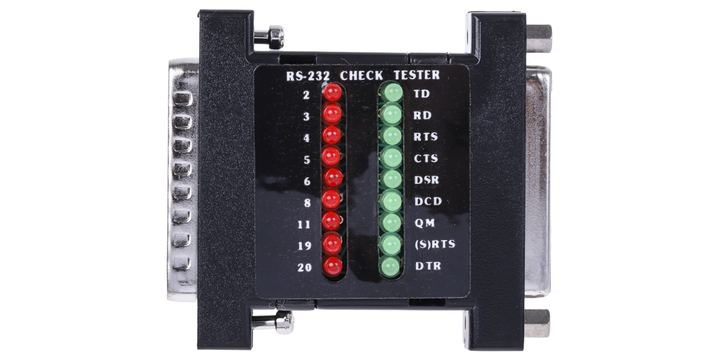

Mini RS-232 Monitor

This small and effortless RS-232 breakout box is a super simple way of monitoring RS-232C/V24 data traffic. The small adapter comes equipped with 9 LEDs that indicate the status of the transmission on the most significant lines. All that is required is to plug it in-line so this requires no connectors or software. All lines are wired pin to pin.
18 LEDs (9 Green, 9 Red)
Pins monitored are 2 (TXD), 3 (RXD), 4(RTS), 5 (CTS)
(DSR), 8 (CD), 20 (DTR), 11 (HS), 19(HS)
All lines are wired pin to pin
The unit has a 25-way ’D’ connector M-F line installation
500 mating cycles
30V operating voltage
30mA, 15 mΩ contact rating
Dimensions: W. 53mm D. 53mm H. 16mm.

S$ 90.37
(exc. GST)
S$ 98.50
(inc. GST)
