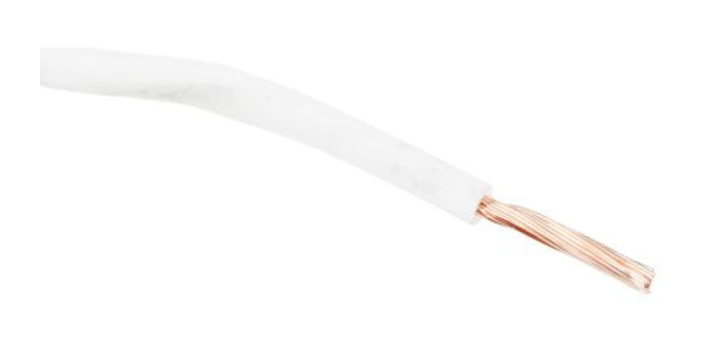

Rs Pro 8360849 White 2.5 Mm² Hook up Wire, 13 Awg, 100m, Polyolefin Cross-linked EI5, Type Ei 5 to En 50363-5 Insulation (1 Reel of 100 Metres)

View Brand

Rs Pro 8360849 White 2.5 Mm² Hook up Wire, 13 Awg, 100m, Polyolefin Cross-linked EI5, Type Ei 5 to En 50363-5 Insulation (1 Reel of 100 Metres)

Brand:	RS Pro
Model:	8360849

Technical Data Sheets

RS Pro Datasheet

Cable Selection Guide

Specifications

View other Electrical Wire dimensions or variations

Length

100 m

Voltage Rating

750 V

Specification Met

Euroclass Eca

Sheath Colour

White

Insulation Material

Polyolefin Cross-linked EI5, Type EI 5 to EN 50363-5

American Wire Gauge

13 AWG

Minimum Operating Temperature

-5°C

Maximum Operating Temperature

+90°C

Outer Diameter

4.3 mm

Conductor Material

Copper

Cable Shape

Round

Insulation Wall Thickness

0.8 mm

Product Description

S$ 216.17

(exc. GST)

S$ 235.63

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 216.17

Quantity:

This item is sold by

SG-4570630354
