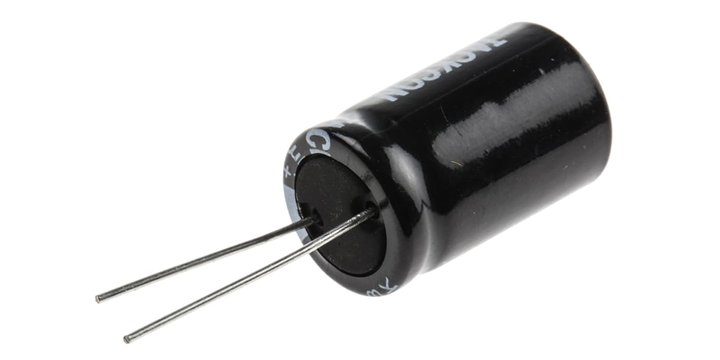

Rs Pro 7111740 470 Microfarad Aluminium Electrolytic Capacitor 100V Dc, Radial, Through Hole

View Brand

Rs Pro 7111740 470 Microfarad Aluminium Electrolytic Capacitor 100V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	7111740

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

100 VDC

Mounting Type

Radial, Through Hole

Dimensions

16 (Dia.) x 26 mm

Capacitance

470 µF

Lead Pitch

7.5 mm

Lifetime

2000h

Ripple Current

840 mA

Leakage Current

<=0.01 CV or 3 µA @ 1 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

10%

Tolerance

±20%

Product Description

S$ 9.94

(exc. GST)

S$ 10.83

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 1.99

Quantity:

MOQ of 5 EA

Bundle of 5 EA

Lead time of 7 working days required.

Item will be ready to dispatch within the lead time specified.

This item is sold by

SG-4570630354

Shop by Specification Table

You can find items with similar specifications from the table below.

Aluminium Capacitors

830 Items

Voltage

250 VDC, 160 VDC, 350 VDC, 50 VDC, 450 VDC

Dimensions

30 (Dia.) x 45 mm, 10 (Dia.) x 12 mm, 6.3 (Dia.) x 11 mm, 18 (Dia.) x 41 mm, 22 (Dia.) x 25 mm

Capacitance

1 µF, 150 µF, 330 nF, 6.8 µF, 10000 µF

Lead Pitch

7.5 mm, 5 mm, 2 mm, 1.5 mm, 12 mm

Lifetime

1000 hours @ 85°C, 1000 hours @ 105°C, 2000h, 1000 h, 1000h

Ripple Current

615 mA, 300 mA, 77 mA, 610 mA, 820 mA

Leakage Current

<=0.01 CV or 3 µA @ 2 min, I <0.02 CV or 3 µA @ 5 min, <=0.03 CV or 3 µA @ 1 min, I <0.03 CV or 3 µA @ 1 min, <=0.02 CV @ 5 min
