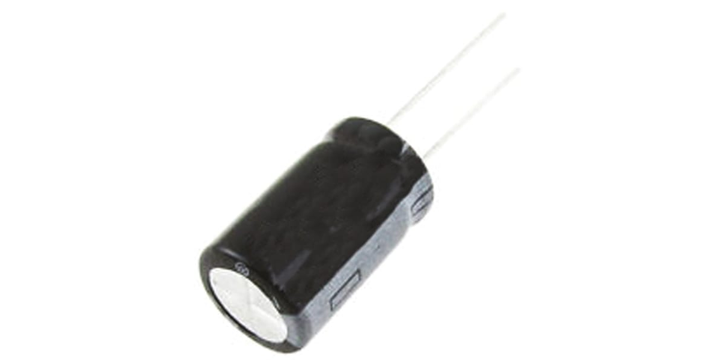

Rs Pro 7111624 470 Microfarad Aluminium Electrolytic Capacitor 63V Dc, Radial, Through Hole

View Brand

Rs Pro 7111624 470 Microfarad Aluminium Electrolytic Capacitor 63V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	7111624

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

63 VDC

Mounting Type

Radial, Through Hole

Dimensions

13 (Dia.) x 26 mm

Capacitance

470 µF

Lead Pitch

5 mm

Lifetime

2000h

Ripple Current

700 mA

Leakage Current

<=0.01 CV or 3 µA @ 1 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

10%

Tolerance

±20%

Product Description

S$ 10.20

(exc. GST)

S$ 11.12

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 1.02

Quantity:

MOQ of 10 EA

Bundle of 10 EA

Lead time of 7 working days required.

Item will be ready to dispatch within the lead time specified.

This item is sold by

SG-4570630354
