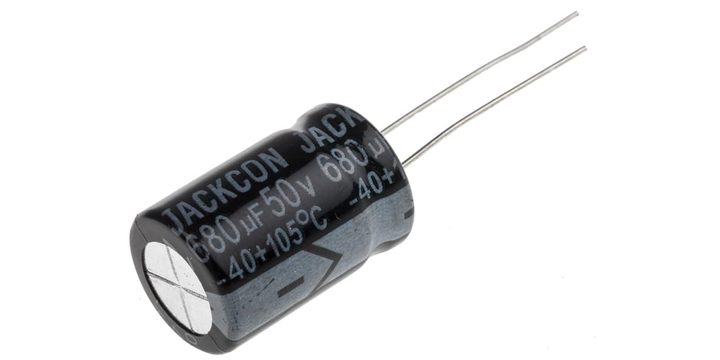

Rs Pro 7111481 680 Microfarad Aluminium Electrolytic Capacitor 50V Dc, Radial, Through Hole

Singapore

Search Keyword, Item or Model

Press

to jump to the search box

Shopping List

Cart

SGD - S$

Rs Pro 7111481 680 Microfarad Aluminium Electrolytic Capacitor 50V Dc, Radial, Through Hole

View Brand

Rs Pro 7111481 680 Microfarad Aluminium Electrolytic Capacitor 50V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	7111481

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

50 VDC

Mounting Type

Radial, Through Hole

Dimensions

13 (Dia.) x 21 mm

Capacitance

680 µF

Lead Pitch

5 mm

Lifetime

2000h

Ripple Current

730 mA

Leakage Current

<=0.01 CV or 3 µA @ 1 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

10%

Tolerance

±20%

Product Description

S$ 10.21

(exc. GST)

S$ 11.13

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 1.02

Quantity:

MOQ of 10 EA

Bundle of 10 EA

Lead time of 7 working days required.

Item will be ready to dispatch within the lead time specified.
