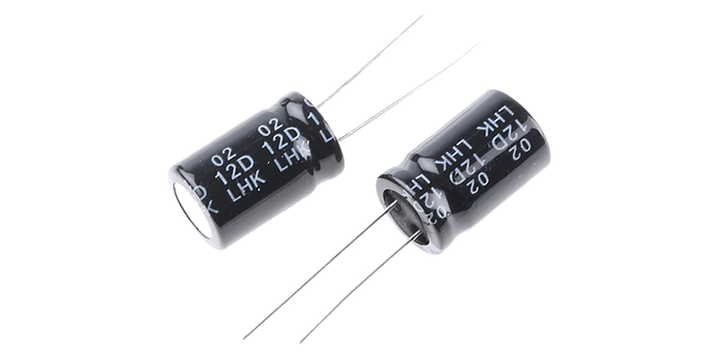

Rs Pro 7111179P 2200 Microfarad Aluminium Electrolytic Capacitor 25V Dc, Radial, Through Hole

View Brand

Rs Pro 7111179P 2200 Microfarad Aluminium Electrolytic Capacitor 25V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	7111179P

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

25 VDC

Mounting Type

Radial, Through Hole

Dimensions

13 (Dia.) x 21 mm

Capacitance

2200 µF

Lead Pitch

5 mm

Lifetime

2000h

Ripple Current

1.21 A

Leakage Current

<=0.01 CV or 3 µA @ 1 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

14%

Tolerance

±20%

Product Description

S$ 83.40

(exc. GST)

S$ 90.91

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 0.83

Quantity:

MOQ of 100 EA

Bundle of 10 EA

Lead time of 7 working days required.

Item will be ready to dispatch within the lead time specified.
