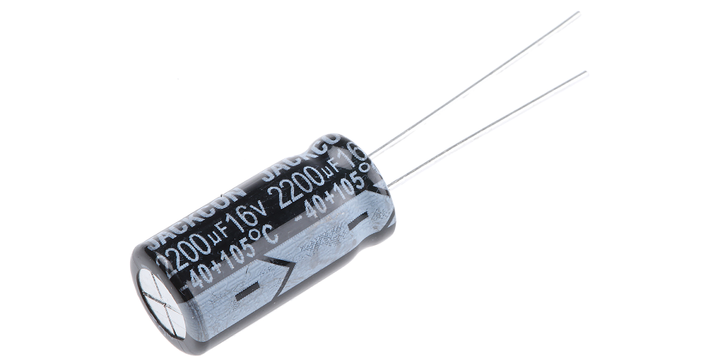

Rs Pro 7111006 2200 Microfarad Aluminium Electrolytic Capacitor 16V Dc, Radial, Through Hole

View Brand

Rs Pro 7111006 2200 Microfarad Aluminium Electrolytic Capacitor 16V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	7111006

Technical Data Sheets

RS Pro Datasheet

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

16 VDC

Mounting Type

Radial, Through Hole

Dimensions

10 (Dia.) x 20 mm

Capacitance

2200 µF

Lead Pitch

5 mm

Lifetime

2000h

Ripple Current

980 mA

Leakage Current

<=0.01 CV or 3 µA @ 1 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

16%

Tolerance

±20%

Product Description

S$ 8.34

(exc. GST)

S$ 9.09

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 0.83

Quantity:

MOQ of 10 EA

Bundle of 10 EA

Stock:

1 EA in stock

In Seller's Warehouse

This product is invalid.

Stock Count is less than Minimum Order Quantity.

This item is sold by

SG-4570630354
