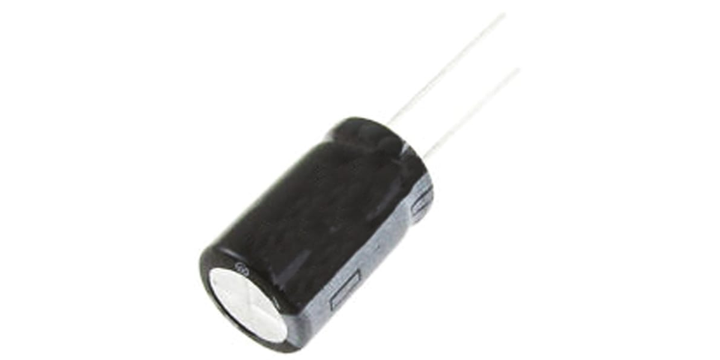

Rs Pro 7110854P 1000 Microfarad Aluminium Electrolytic Capacitor 10V Dc, Radial, Through Hole

Singapore

Search Keyword, Item or Model

Press

to jump to the search box

Shopping List

Cart

SGD - S$

Rs Pro 7110854P 1000 Microfarad Aluminium Electrolytic Capacitor 10V Dc, Radial, Through Hole

View Brand

Rs Pro 7110854P 1000 Microfarad Aluminium Electrolytic Capacitor 10V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	7110854P

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

10 VDC

Mounting Type

Radial, Through Hole

Dimensions

10 (Dia.) x 12 mm

Capacitance

1000 µF

Lead Pitch

5 mm

Lifetime

2000h

Ripple Current

530 mA

Leakage Current

<=0.01 CV or 3 µA @ 1 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

20%

Tolerance

±20%

Product Description

S$ 130.75

(exc. GST)

S$ 142.52

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 0.52

Quantity:

MOQ of 250 EA

Bundle of 25 EA

Lead time of 7 working days required.
