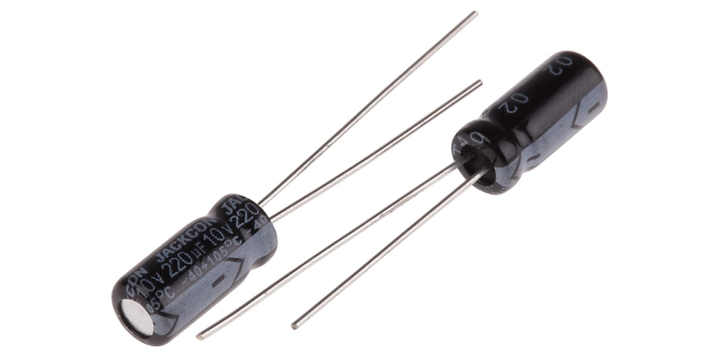

Rs Pro 7110808 220 Microfarad Aluminium Electrolytic Capacitor 10V Dc, Radial, Through Hole

Singapore

Search Keyword, Item or Model

Press

to jump to the search box

Shopping List

Cart

SGD - S$

Rs Pro 7110808 220 Microfarad Aluminium Electrolytic Capacitor 10V Dc, Radial, Through Hole

View Brand

Rs Pro 7110808 220 Microfarad Aluminium Electrolytic Capacitor 10V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	7110808

Technical Data Sheets

RS Pro Datasheet

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

10 VDC

Mounting Type

Radial, Through Hole

Dimensions

5 (Dia.) x 11 mm

Capacitance

220 µF

Lead Pitch

2 mm

Lifetime

1000h

Ripple Current

170 mA

Leakage Current

<=0.01 CV or 3 µA @ 1 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

20%

Tolerance

±20%

Product Description

S$ 3.60

(exc. GST)

S$ 3.92

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 0.04

Quantity:

MOQ of 100 EA

Bundle of 100 EA

Stock:

400 EA in stock

In Seller's Warehouse

This item is sold by

SG-4570630354
