Rs Pro 7076528P 47 Microfarad Aluminium Electrolytic Capacitor 250V Dc, Axial, Through Hole

View Brand

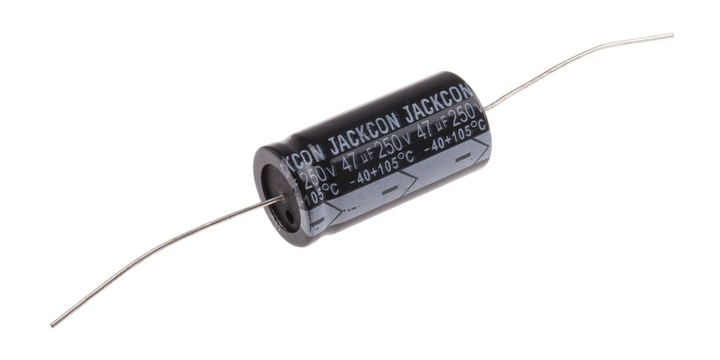

Rs Pro 7076528P 47 Microfarad Aluminium Electrolytic Capacitor 250V Dc, Axial, Through Hole

Brand:	RS Pro
Model:	7076528P

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

250 VDC

Mounting Type

Axial, Through Hole

Dimensions

16 (Dia.) x 33 mm

Capacitance

47 µF

Lifetime

1000h

Ripple Current

238 mA

Leakage Current

<=0.03 CV or 4 µA @ 5 min

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+105°C

Dissipation Factor

16%

Tolerance

±20%

Product Description

S$ 134.20

(exc. GST)

S$ 146.28

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 6.71

Quantity:

MOQ of 20 EA

Bundle of 2 EA

Lead time of 7 working days required.
