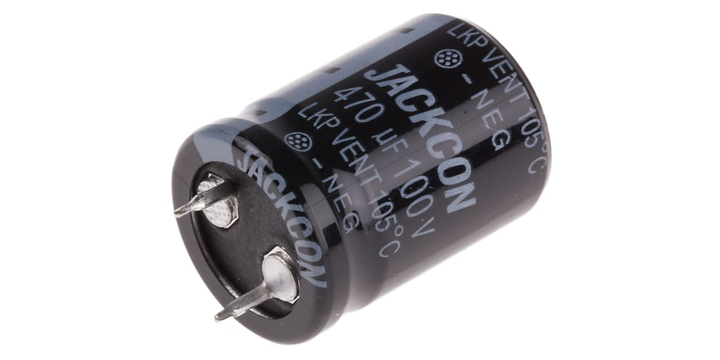

Rs Pro 7063345P 470 Microfarad Aluminium Electrolytic Capacitor 100V Dc, Snap-In

Singapore

Search Keyword, Item or Model

Press

to jump to the search box

Shopping List

Cart

SGD - S$

Rs Pro 7063345P 470 Microfarad Aluminium Electrolytic Capacitor 100V Dc, Snap-In

View Brand

Rs Pro 7063345P 470 Microfarad Aluminium Electrolytic Capacitor 100V Dc, Snap-In

Brand:	RS Pro
Model:	7063345P

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

100 VDC

Mounting Type

Snap-In

Dimensions

22 (Dia.) x 30 mm

Capacitance

470 µF

Lead Pitch

10 mm

Lifetime

2000h

Ripple Current

900 mA

Leakage Current

<=0.02 CV @ 5 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

10%

Tolerance

±20%

Product Description

S$ 67.70

(exc. GST)

S$ 73.79

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 6.77

Quantity:

MOQ of 10 EA

Bundle of 2 EA

Lead time of 7 working days required.

Item will be ready to dispatch within the lead time specified.
