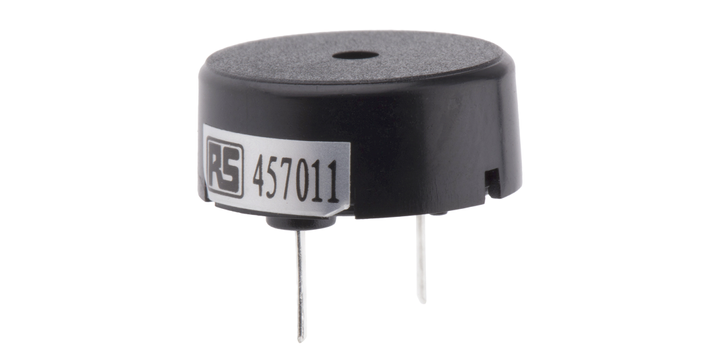

Rs Pro 457011 78dB Through Hole Continuous External Piezo Buzzer, 17 (dia.) X 7mm, 1V Ac Min, 30V Ac Max
Technical Data Sheets
Specifications
Please select at least one specification below.
Mounting Type
Through Hole
Height
7 mm
Dimensions
17 (Dia.) x 7 mm
Diameter
17 mm
Drive Type
External
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
+70°C
Minimum Supply Voltage
1V ac
Maximum Supply Voltage
30V ac
Sound Level
78 dB
Tone Type
Continuous
Maximum Frequency
4.5 kHz
Supply Current
1 mA
Minimum Frequency
3500 Hz
Capacitance
15 nF
Product Description
S$ 4.46
(exc. GST)
S$ 4.86
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 0.89 |
Quantity:
EA
MOQ of 5 EA
Bundle of 5 EA
