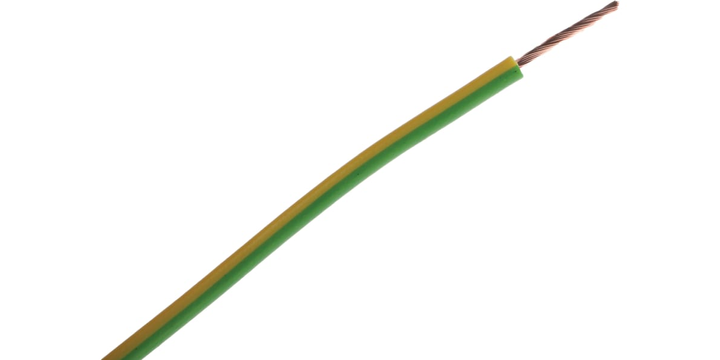

Rs Pro 2567024 Green/Yellow 1 Mm² Hook up Wire, 18 Awg, 16/0.2mm, 100m, Pvc Insulation (1 Reel of 100 Metres)

View Brand

Rs Pro 2567024 Green/Yellow 1 Mm² Hook up Wire, 18 Awg, 16/0.2mm, 100m, Pvc Insulation (1 Reel of 100 Metres)

Brand:	RS Pro
Model:	2567024

Technical Data Sheets

RS PRO Datasheet

Specifications

View other Electrical Wire dimensions or variations

Length

100 m

Current Rating

17 A

Voltage Rating

600/1000 V

Sheath Colour

Green/Yellow

Insulation Material

PVC

American Wire Gauge

18 AWG

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+105°C

Number of Strands

Conductor Material

Annealed Copper

Core Strands

16/0.2mm

Cable Type

PVC Wire

Cable Shape

Round

Product Description

S$ 41.67

(exc. GST)

S$ 45.42

(inc. GST)
