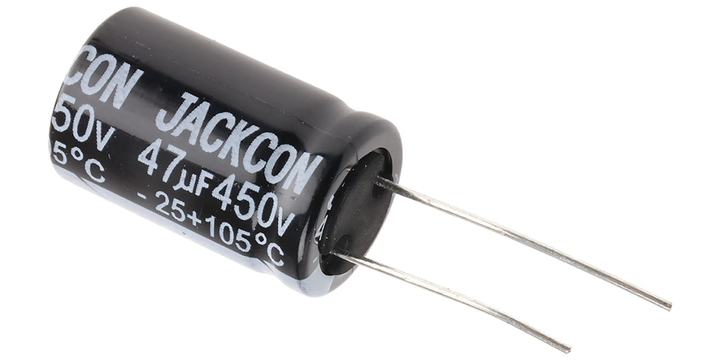

Rs Pro 1730279 47 Microfarad Aluminium Electrolytic Capacitor 450V Dc, Radial, Through Hole

Singapore

Search Keyword, Item or Model

Press

to jump to the search box

Shopping List

Cart

SGD - S$

Rs Pro 1730279 47 Microfarad Aluminium Electrolytic Capacitor 450V Dc, Radial, Through Hole

View Brand

Rs Pro 1730279 47 Microfarad Aluminium Electrolytic Capacitor 450V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	1730279

Technical Data Sheets

RS Pro Datasheet

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

450 VDC

Mounting Type

Radial, Through Hole

Dimensions

16 (Dia.) x 26 mm

Capacitance

47 µF

Lead Pitch

7.5 mm

Lifetime

2000h

Ripple Current

250 mA

Leakage Current

I <0.03 CV or 3 µA @ 1 min

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+105°C

Dissipation Factor

20%

Tolerance

±20%

Product Description

S$ 300.40

(exc. GST)

S$ 327.44

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 1.50
