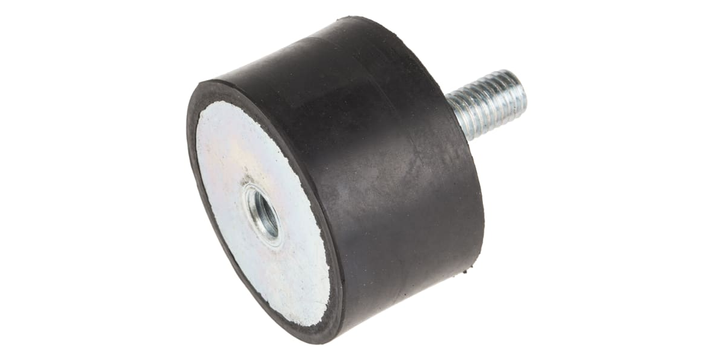

Rs Pro 1712609 M10 Anti Vibration Mount, Male to Female Bobbin With 186.12kg Compression Load (1 Bag of 2)
Technical Data Sheets
Specifications
Please select at least one specification below.
Thread Size
M10
Diameter
50 mm
Overall Height
30 mm
Series
AV Type B
Material
Natural Rubber
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+70°C
Anti Vibration Mount Type
Male to Female Bobbin
Compression Load
186.12 kg
Metalwork
Zinc Plated Steel
Shore Hardness
60 Shore A
Shearing Load
53 kg
Compression Deflection
3 mm
Product Description
S$ 21.60
(exc. GST)
S$ 23.54
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 21.60 |
