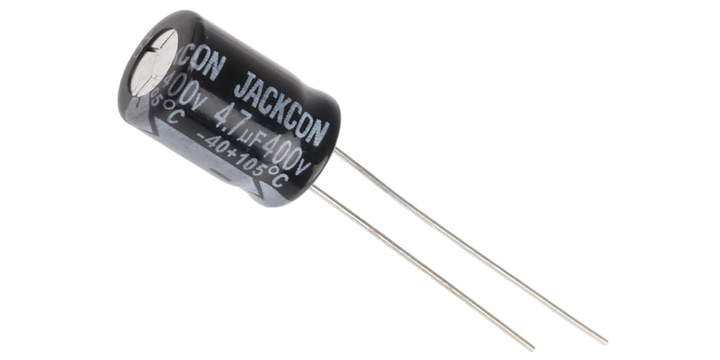

Rs Pro 1701327 4.7 Microfarad Aluminium Electrolytic Capacitor 400V Dc, Radial, Through Hole

View Brand

Rs Pro 1701327 4.7 Microfarad Aluminium Electrolytic Capacitor 400V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	1701327

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

400 VDC

Mounting Type

Radial, Through Hole

Dimensions

8 (Dia.) x 11 mm

Capacitance

4.7 µF

Lead Pitch

3.5 mm

Lifetime

2000h

Ripple Current

60 mA

Leakage Current

<=0.03 CV or 3 µA @ 1 min

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+105°C

Dissipation Factor

20%

Tolerance

±20%

Product Description

S$ 188.00

(exc. GST)

S$ 204.92

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 0.19

Quantity:

MOQ of 1000 EA

Bundle of 1000 EA

Lead time of 7 working days required.

Item will be ready to dispatch within the lead time specified.
