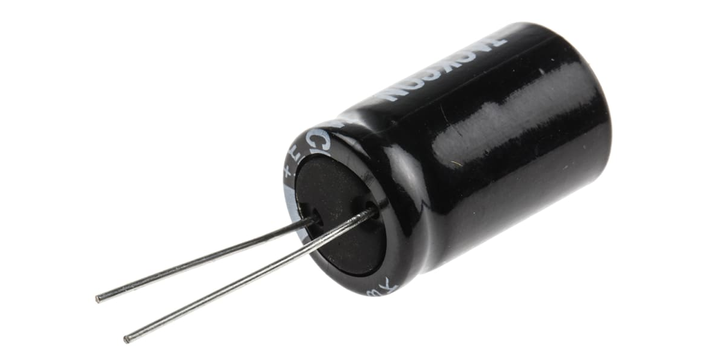

Rs Pro 1701290 470 Microfarad Aluminium Electrolytic Capacitor 100V Dc, Radial, Through Hole

Singapore

Search Keyword, Item or Model

Press

to jump to the search box

Shopping List

Cart

SGD - S$

Rs Pro 1701290 470 Microfarad Aluminium Electrolytic Capacitor 100V Dc, Radial, Through Hole

View Brand

Rs Pro 1701290 470 Microfarad Aluminium Electrolytic Capacitor 100V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	1701290

Technical Data Sheets

RS Pro Datasheet

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

100 VDC

Mounting Type

Radial, Through Hole

Dimensions

16 (Dia.) x 26 mm

Capacitance

470 µF

Lead Pitch

7.5 mm

Lifetime

2000h

Ripple Current

840 mA

Leakage Current

<=0.01 CV or 3 µA @ 1 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

10%

Tolerance

±20%

Product Description

S$ 234.00

(exc. GST)

S$ 255.06

(inc. GST)

Quantity:

MOQ of 200 EA

Bundle of 200 EA
