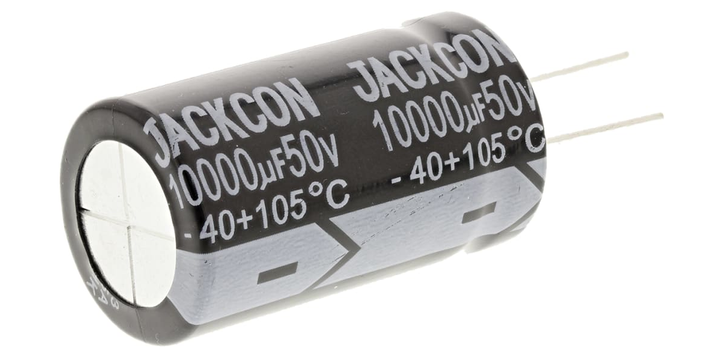

Rs Pro 1701264 10000 Microfarad Aluminium Electrolytic Capacitor 50V Dc, Radial, Through Hole

Singapore

Search Keyword, Item or Model

Press

to jump to the search box

Shopping List

Cart

SGD - S$

Rs Pro 1701264 10000 Microfarad Aluminium Electrolytic Capacitor 50V Dc, Radial, Through Hole

View Brand

Rs Pro 1701264 10000 Microfarad Aluminium Electrolytic Capacitor 50V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	1701264

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

50 VDC

Mounting Type

Radial, Through Hole

Dimensions

25 (Dia.) x 50 mm

Capacitance

10000 µF

Lead Pitch

12 mm

Lifetime

2000h

Ripple Current

3.1 A

Leakage Current

<=0.01 CV or 3 µA @ 1 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

10%

Tolerance

±20%

Product Description

S$ 220.68

(exc. GST)

S$ 240.54

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 8.83

Quantity:

MOQ of 25 EA

Bundle of 25 EA

Lead time of 7 working days required.

Item will be ready to dispatch within the lead time specified.
