Rs Pro 1701263 10000 Microfarad Aluminium Electrolytic Capacitor 50V Dc, Radial, Through Hole

View Brand

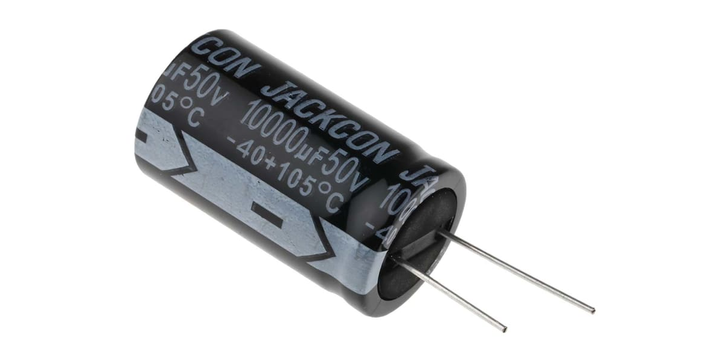

Rs Pro 1701263 10000 Microfarad Aluminium Electrolytic Capacitor 50V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	1701263

Technical Data Sheets

RS Pro Datasheet

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

50 VDC

Mounting Type

Radial, Through Hole

Dimensions

25 (Dia.) x 42 mm

Capacitance

10000 µF

Lead Pitch

12 mm

Lifetime

2000h

Ripple Current

2.8 A

Leakage Current

<=0.01 CV or 3 µA @ 1 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

10%

Tolerance

±20%

Product Description

S$ 165.95

(exc. GST)

S$ 180.89

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 6.64

Quantity:

MOQ of 25 EA

Bundle of 25 EA
