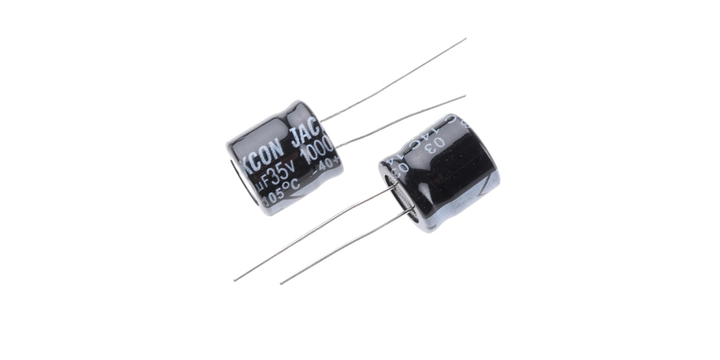

Rs Pro 1701229 1000 Microfarad Aluminium Electrolytic Capacitor 35V Dc, Radial, Through Hole

Singapore

Search Keyword, Item or Model

Press

to jump to the search box

Shopping List

Cart

SGD - S$

Rs Pro 1701229 1000 Microfarad Aluminium Electrolytic Capacitor 35V Dc, Radial, Through Hole

View Brand

Rs Pro 1701229 1000 Microfarad Aluminium Electrolytic Capacitor 35V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	1701229

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

35 VDC

Mounting Type

Radial, Through Hole

Dimensions

13 (Dia.) x 14 mm

Capacitance

1000 µF

Lead Pitch

5 mm

Lifetime

2000h

Ripple Current

850 mA

Leakage Current

<=0.01 CV or 3 µA @ 1 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

12%

Tolerance

±20%

Product Description

S$ 109.50

(exc. GST)

S$ 119.36

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 0.44

Quantity:

MOQ of 250 EA

Bundle of 250 EA

Lead time of 7 working days required.

Item will be ready to dispatch within the lead time specified.

This item is sold by

SG-4570630354
