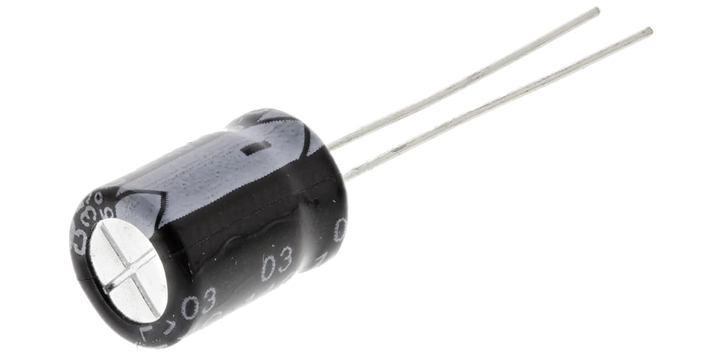

Rs Pro 1701217 220 Microfarad Aluminium Electrolytic Capacitor 35V Dc, Radial, Through Hole

View Brand

Rs Pro 1701217 220 Microfarad Aluminium Electrolytic Capacitor 35V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	1701217

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

35 VDC

Mounting Type

Radial, Through Hole

Dimensions

8 (Dia.) x 11 mm

Capacitance

220 µF

Lead Pitch

3.5 mm

Lifetime

2000h

Ripple Current

300 mA

Leakage Current

<=0.01 CV or 3 µA @ 1 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

12%

Tolerance

±20%

Product Description

S$ 125.00

(exc. GST)

S$ 136.25

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 0.13

Quantity:

MOQ of 1000 EA

Bundle of 1000 EA

Lead time of 7 working days required.

Item will be ready to dispatch within the lead time specified.
