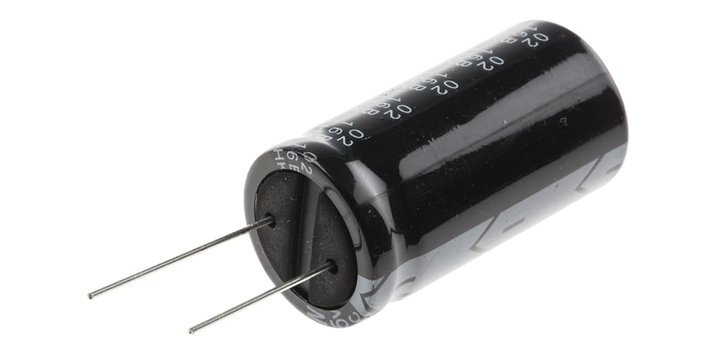

Rs Pro 1701210 15000 Microfarad Aluminium Electrolytic Capacitor 25V Dc, Radial, Through Hole

Singapore

Search Keyword, Item or Model

Press

to jump to the search box

Shopping List

Cart

SGD - S$

Rs Pro 1701210 15000 Microfarad Aluminium Electrolytic Capacitor 25V Dc, Radial, Through Hole

View Brand

Rs Pro 1701210 15000 Microfarad Aluminium Electrolytic Capacitor 25V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	1701210

Technical Data Sheets

RS Pro Datasheet

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

25 VDC

Mounting Type

Radial, Through Hole

Dimensions

22 (Dia.) x 42 mm

Capacitance

15000 µF

Lead Pitch

10 mm

Lifetime

2000h

Ripple Current

2.5 A

Leakage Current

<=0.01 CV or 3 µA @ 1 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

14%

Tolerance

±20%

Product Description

S$ 92.38

(exc. GST)

S$ 100.69

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 3.70

Quantity:

MOQ of 25 EA

Bundle of 25 EA
