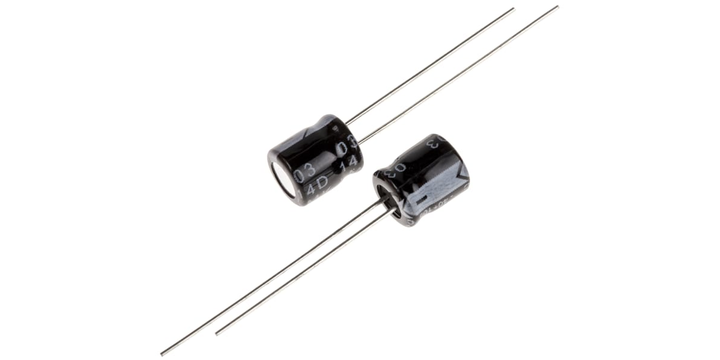

Rs Pro 1701055 47 Microfarad Aluminium Electrolytic Capacitor 35V Dc, Radial, Through Hole

Singapore

Search Keyword, Item or Model

Press

to jump to the search box

Shopping List

Cart

SGD - S$

Rs Pro 1701055 47 Microfarad Aluminium Electrolytic Capacitor 35V Dc, Radial, Through Hole

View Brand

Rs Pro 1701055 47 Microfarad Aluminium Electrolytic Capacitor 35V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	1701055

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

35 VDC

Mounting Type

Radial, Through Hole

Dimensions

6 (Dia.) x 7 mm

Capacitance

47 µF

Lead Pitch

2.5 mm

Lifetime

1000h

Ripple Current

70 mA

Leakage Current

<=0.01 CV or 3 µA @ 1 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

12%

Tolerance

±20%

Product Description

S$ 63.00

(exc. GST)

S$ 68.67

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 0.06

Quantity:

MOQ of 1000 EA

Bundle of 1000 EA

Lead time of 7 working days required.
