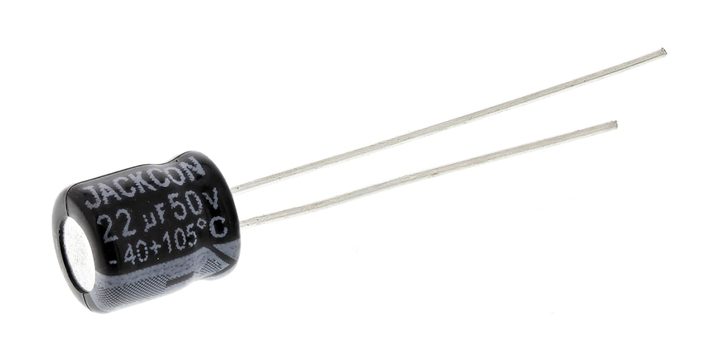

Rs Pro 1701053 22 Microfarad Aluminium Electrolytic Capacitor 50V Dc, Radial, Through Hole

View Brand

Rs Pro 1701053 22 Microfarad Aluminium Electrolytic Capacitor 50V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	1701053

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

50 VDC

Mounting Type

Radial, Through Hole

Dimensions

6 (Dia.) x 7 mm

Capacitance

22 µF

Lead Pitch

2.5 mm

Lifetime

1000h

Ripple Current

50 mA

Leakage Current

<=0.01 CV or 3 µA @ 1 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

10%

Tolerance

±20%

Product Description

S$ 63.00

(exc. GST)

S$ 68.67

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 0.06

Quantity:

MOQ of 1000 EA

Bundle of 1000 EA

Lead time of 7 working days required.

Item will be ready to dispatch within the lead time specified.
