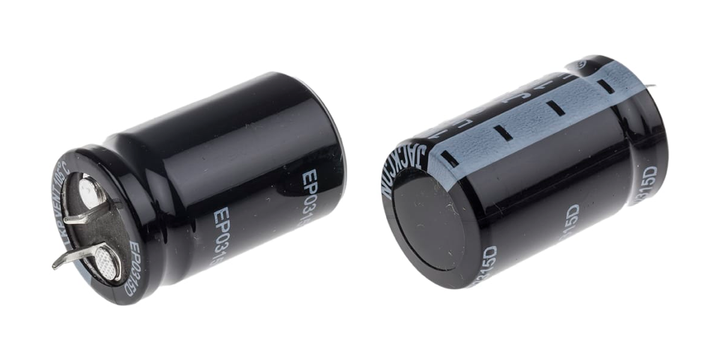

Rs Pro 1701026 100 Microfarad Aluminium Electrolytic Capacitor 400V Dc, Snap-In

View Brand

Rs Pro 1701026 100 Microfarad Aluminium Electrolytic Capacitor 400V Dc, Snap-In

Brand:	RS Pro
Model:	1701026

Technical Data Sheets

RS Pro Datasheet

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

400 VDC

Mounting Type

Snap-In

Dimensions

22 (Dia.) x 35 mm

Capacitance

100 µF

Lead Pitch

10 mm

Lifetime

2000h

Ripple Current

750 mA

Leakage Current

<=0.02 CV @ 5 min

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+105°C

Dissipation Factor

20%

Tolerance

±20%

Product Description

S$ 788.60

(exc. GST)

S$ 859.57

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 3.94

Quantity:

MOQ of 200 EA

Bundle of 200 EA

This item is sold by

SG-4570630354
