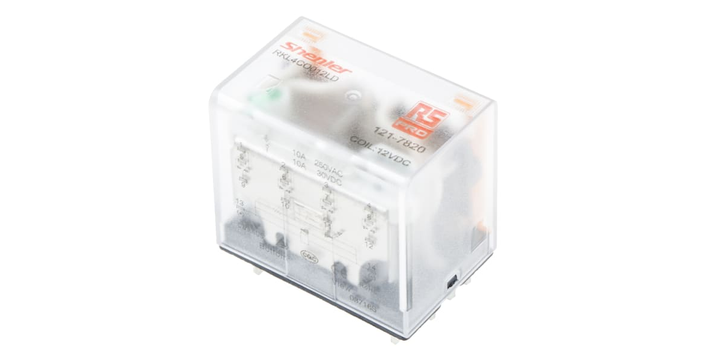

Rs Pro 1217820 Plug in Power Relay, 12V Dc Coil, 10A Switching Current, 4PDT
Technical Data Sheets
Specifications
Please select at least one specification below.
Mounting Type
Plug In
Number of Poles
4
Contact Material
Silver Alloy
Contact Configuration
4PDT
Coil Voltage
12 V dc
Standards Met
CE, CQC, CULus, RoHS Compliant
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
55°C
Terminal Type
Plug In
Maximum Switching Voltage AC
250 V
Maximum Switching Voltage DC
30 V
Coil Power
300 W
Isolation Coil To Contact
2 kV ac
Maximum Switching Power DC
1.5 W
Switching Current
10 A
Maximum Switching Power AC
2.5 VA
Length
41.5 mm
This spec is not available in the specification table.
Application
General Purpose
This spec is not available in the specification table.
Depth
28 mm
This spec is not available in the specification table.
Height
36.5 mm
This spec is not available in the specification table.
Life
100000 (Electrical) cycles, 10000000 (Mechanical) cycles
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
