Portable Thermal Camera, Model: BG118
Portable Thermal Camera, Model: BG118
Brand:
Blue Gizmo
Model:
BG118
Technical Data Sheets
Product Description

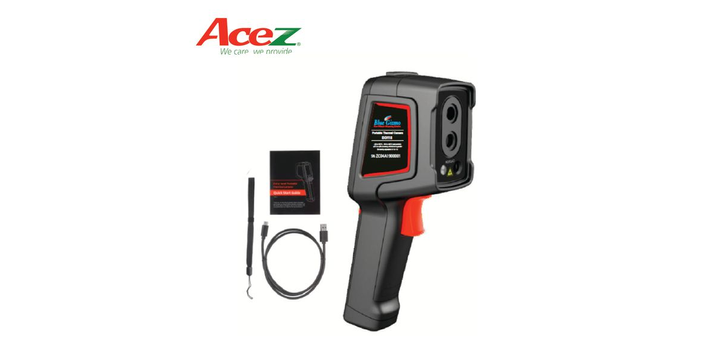

Blue Gizmo Portable Thermal Camera, BG118


Features

• Boot up in 1 second

• 2.4 inch large display

• Battery life up to 8 hours

• 2 hours quick charge (Type-C Interface)

• IR, visible, laser indicator

• Trigger button for photo taking

• IP54 Encapsulation (2m drop test)

• 120x90 WLP IR modules

• 320 x 240 pixel color LCD

• Can display radiometric data of 10,800 pixels

• Data downloadable via USB or removable TF/SD card

Application

• Building diagnostics

• HVAC inspection

• Electrical inspection

• Food equipment maintenance

• Kitchen oven and refrigerator

• Food processing

Specification

IR Image & Optical

  • IR resolution : 120 x 90 @ 17μm
  • Detector type : VOx/7.5~14μm
  • Frame rate : 25HZ / 9HZ
  • Thermal sensitivity / NETD : 60 mk
  • Focal Length : 2.28mm / F1.13
  • Field of view (FOV) : 50° x 38°
  • Spatial resolution (IFOV) : 7.6 mrad
  • Focus Focus-free

Image Display

  • Display 2.4 inch IPS technology TFT display
  • Display resolution : 320 x 240
  • Image model IR image
  • Color Palettes 6 colors (white hot, iron red, hot iron, arctic, rainbow 1, rainbow 2)

Temperature Measurement

  • Temperature range : -20 to 400°C
  • Accuracy : ±2°C or ±2% of the reading whichever greater than 100°C (target temp ≥0°C, ambient temperature is 15 to 30°C)
  • Measurement spot : Center spot
  • Measurement area : 3 include max & min temperature
  • Alarm Visuable (Max & Min spot alarm)

Connections & Communications

  • USB TYPE C
  • Laser : Yes
  • PC IR analysis software : Yes

Environmental Parameter

  • Operating temperature : -10 to 50°C
  • Storage temperature : -40 to 70°C
  • Encapsulation : IP54, 2m drop test
  • Certification : CE / ROHS / FCC
  • Battery Type : Li-ion Battery
  • Weight / Dimension : 350g / 194mm x 61.5mm x 76mm
S$ 350.00
(exc. GST)
S$ 381.50
(inc. GST)
