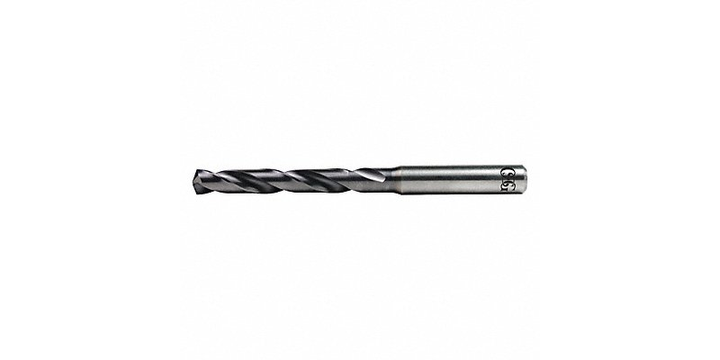

Osg HP2552343 Jobber Drill 15/64 Carbide

View Brand

Osg HP2552343 Jobber Drill 15/64 Carbide

Brand:	OSG
Model:	HP2552343

Specifications

View other Jobber Drills dimensions or variations

Drill Bit Point Type

R Thinning Point

Drill Bit Size

15/64"

Overall Length

82.00 mm

Standards

Not Rated

Material - Machining

Carbide

Shank Dia.

6 mm

Drill Bit Point Angle

140°

Measurement System

Fractional Inch

Flute Type

Spiral

Flute Length

44.00 mm

Cutting Direction

Right Hand

Finish - Machining

TiAlN

Coolant Fed

Coolant Through

Shank Type - Machining

Straight

Decimal Equivalent

0.2344

Primary Material Application

Tool and Die Steel, Steel, Cast Iron, Hardened Steel

Series

HP255

Maximum Drilling Depth

44 mm

Product Description

S$ 226.17

(exc. GST)

S$ 246.53

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 226.17

Quantity:

Lead time of 1 working days required.
