Omega 1PT100KN3045CLA Rtd Sensor, 100 Ohm, Class A

View Brand

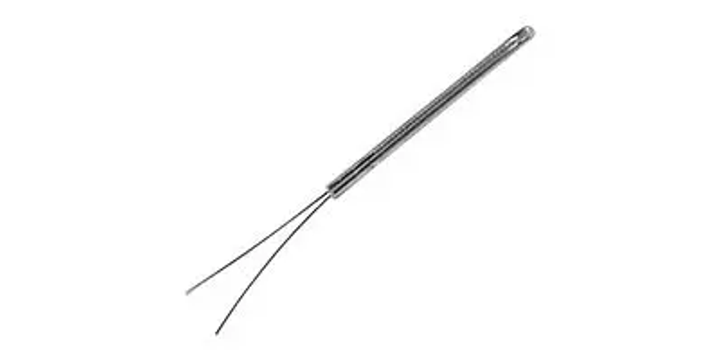

Omega 1PT100KN3045CLA Rtd Sensor, 100 Ohm, Class A

Brand:	OMEGA
Model:	1PT100KN3045CLA

Technical Data Sheets

Technical Data Sheet (491.33KB) EN

Specifications

View other RTD Sensors dimensions or variations

Product Range

KN Series

Probe Material

Ceramic

Cable Length - Metric

10 mm

Measured Temperature Max

600 °C

Measured Temperature Min

-200 °C

Probe Length

30 mm

rohsCompliant

YES

rohsPhthalatesCompliant

YES

Cable Length - Imperial

0.39"

Resistance @ 0°C

100 ohm

RTD Element Material

Platinum

RTD Accuracy

Class A

Cable Termination

Wire Leaded

RTD Type

Probe

Probe Diameter

4.5 mm

Product Description

S$ 59.22

(exc. GST)

S$ 64.55

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 59.22

Quantity:

Lead time of 5 working days required.

Item will be ready to dispatch within the lead time specified.
