Product Description
NSK NJ308EWC3 Roller Bearing
Parts Number
- NJ308EWC3

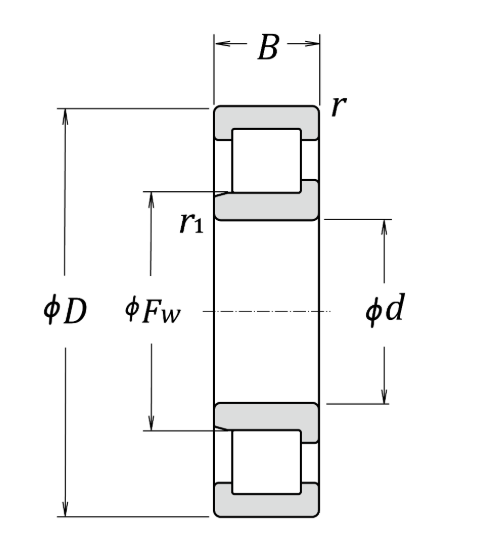

Boundary Dimensions
- d: 40mm Bore diameter
- D: 90mm Outside diameter
- B: 23mm Width
- FW: 52mm Raceway diameter of inner ring
- r (min.): 1.5mm Chamfer dimension
- r1 (min.): 1.5mm Chamfer dimension
Basic Load Ratings
- Cr: 102000N Basic dynamic load rating
- C0r: 81500N Basic static load rating
Speeds
- Thermal Speed Rating (Oil-bath): 7500min-1 Oil-bath lubrication subject to conditions outlined in ISO 15312
- Mechanical (forced-circulation oil): 12000min-1 Properly designed and controlled forced-circulation oil lubrication
- Grease: 6700min-1 Grease lubrication
- Oil (Oil-bath): 8000min-1 Oil-bath lubrication
Abutment and Fillet Dimensions
- db (min.): 48mm Diameter of shaft / spacer sleeve abutment
- db (max.): 50mm Diameter of shaft / spacer sleeve abutment
- dd (min.): 60mm Diameter of shaft abutment
- Da (max.): 82mm Diameter of housing abutment
- ra (max.): 1.5mm Radius of shaft or housing fillet
Mass
- (approx.): 0.679kg
S$ 67.50
(exc. GST)
S$ 73.58
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 67.50 |
Quantity:
EA
Lead time of 8 working days required.
Item will be ready to dispatch within the lead time specified.
