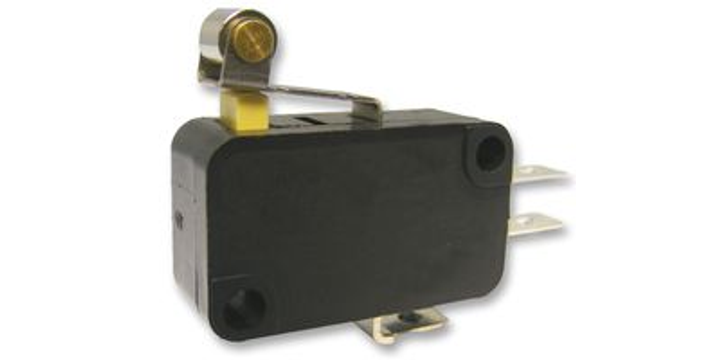

Multicomp Pro M141T02-AC0306D Microswitch, Spdt, 10A, Short Roller
Multicomp Pro M141T02-AC0306D Microswitch, Spdt, 10A, Short Roller
| Brand: | MULTICOMP PRO |
| Model: | M141T02-AC0306D |
Technical Data Sheets
Specifications
Please select at least one specification below.
Series
M141T01 Series
Type
Snap Action
Microswitch Actuator
Short Roller Lever
Contact Configuration
SPDT
Contact Voltage Nom
250 V AC
Contact Current Max
10 A
Contact Voltage Max
250 V AC
Min Operating Temperature
-20°C
Max Operating Temperature
85°C
Max Operating Force
200 gf
Height
15.8 mm
This spec is not available in the specification table.
Width
27.8 mm
This spec is not available in the specification table.
Switch Operation
Off-On
This spec is not available in the specification table.
Switch Case
PBT (Polybutylene Terephthalate)
This spec is not available in the specification table.
Insulation Resistance
100 Mohm
This spec is not available in the specification table.
Contact Resistance
100 mohm
This spec is not available in the specification table.
Product Description
S$ 4.15
(exc. GST)
S$ 4.53
(inc. GST)
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | S$ 4.15 |
Quantity:
EA
Lead time of 5 working days required.
Item will be ready to dispatch within the lead time specified.
