Misumi GCJC20-RD-8-8 Jaw Couplings Clamping Type

View Brand

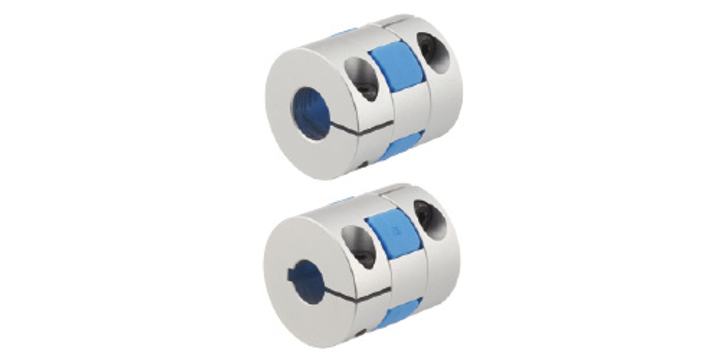

Misumi GCJC20-RD-8-8 Jaw Couplings Clamping Type

Brand:	MISUMI
Model:	GCJC20-RD-8-8

Specifications

View other Shaft Couplings dimensions or variations

Length

30 mm

Body Material

Aluminum

Shaft Bore Diameter 1

8 mm

Shaft Bore Diameter 2

8 mm

Outer Diameter

20 mm

Allowable Torque Range

3.01 - 5.00 Nm

Shaft Tightening Method

Fastening Bolt

Shaft Bore Shape

Standard Bore

Allowable Lateral Misalignment [mm]

Allowable Lateral Misalignment Range [mm]

0.02 - 0.2

Allowable Angular Misalignment [deg]

deg

Max. Rotational Speed [r/min]

31000

Spacer (Color)

RD (Red)

Series Name

Jaw

Allowable Misalignment

Angular Misalignment / Eccentricity / Axial Misalignment

Max. Rotational Speed Range

4001 - 10000 r/min

Allowable Axial Misalignment

Product Description

S$ 22.09

(exc. GST)

S$ 24.08

(inc. GST)

Units	Discount	Unit Price
1	-	S$ 22.09

Quantity:

Stock:

17 EA in stock

In Seller's Warehouse

This item is sold by

SG-4887073424
